Features

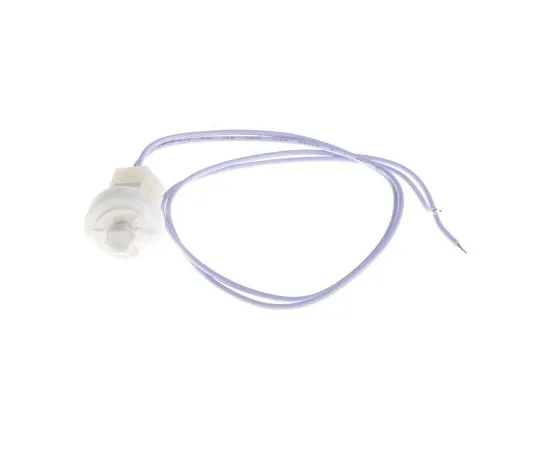

• RS Pro Small Vertical Float Switch
• This RS Pro float switch is ideal for water dispensers, tank monitoring systems, v***ing machines, coffee makers, and printing presses. Polypropylene housing suitable for a variety of applications. It is safe even if food comes in contact with it.　IP protection rating This float switch is rated IP67.　Installation The RS Pro float switch can be mounted on the top or bottom of the tank. When installed with the stem facing up, the functional behavior is reversed.　Attached leads This float switch has 300 mm UL 1007, AWG 24 leads.　Operating temperature range This float switch can be ***d at 20 → +80 °C.　Type: (; 519-236 519-236) - N/O 140 V ac, diameter 24 mm, length 53 mm (; 519-242 519-242) - N/O 140 V ac, diameter 24 mm, length 43 mm (; 519-232 519-232) - N/O 250 V ac, diameter 24 mm, length 43 mm (; 519-248 519-248) - N/O 130 V ac, diameter 18 mm, length 29.5 mm (; 519-258 519-258) - N/O 250 V ac, diameter 24 mm, length 53 mm
