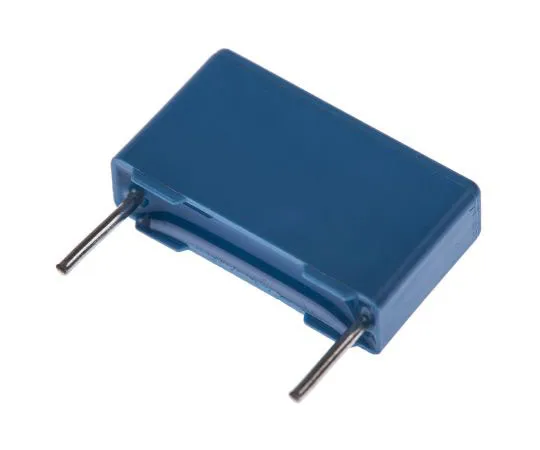

63-7414-48 EPCOS 10nF Polypropylene Capacitor PP 1 kV dc, 250 V ac ±10% Tolerance Through Hole B32654 Series B32652A0103K000
Product Description
Product Model: 63-7414-48Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-7414-48
Product Brand: EPCOS
Features
- B32651..B32656 Series. Construction. Wound capacitor technology with internal series connection for V ;sub>R ;/sub> ≥1250Vdc Plastic case (UL 94 V-0) Epoxy resin sealing. Features. High pulse strength High contact reliability Small dimensions. Typical Applications. TV S-correction TV flyback Electronic ballast circuits
Spec
- Quantity:1bag(1000pieces)
- Capacitance : 10nF
- Voltage : 1 kV dc, 250 V ac
- Mounting Type : Through Hole
- Tolerance : ±10%
- Series : B32654
- Lead Pitch : 15mm
- Length : 18mm
- Depth : 5mm
- Height : 10.5mm
- Dimensions : 18 x 5 x 10.5mm
- Dielectric : PP
- Minimum Operating Temperature : -55°C
- CODE No.:172-5605
