Electronic/Electrical Parts and Controll Equipments

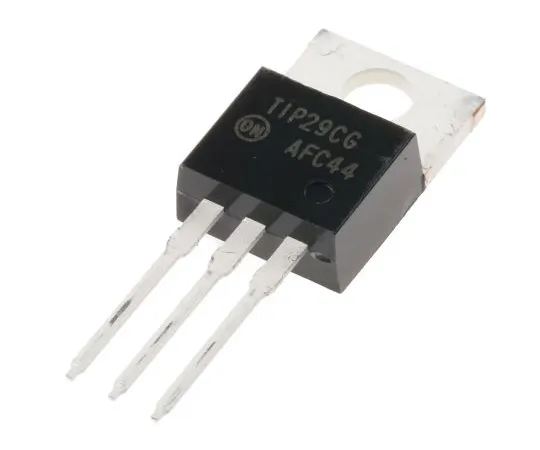

63-5106-07 ON Semi TIP29CG NPN Transistor, 1 A, 100 V, 3-Pin TO-220 TIP29CG
model:
63-5106-07
brand:
ON Semiconductor
Product Description
Product Model: 63-5106-07Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5106-07
Product Brand: ON Semiconductor
Features
- Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard. General Purpose NPN Transistors, up to 1A, ON Semiconductor
Spec
- Quantity：1bag(10pieces)
- Transistor Type : NPN
- Maximum DC Collector Current : 1 A
- Maximum Collector Emitter Voltage : 100 V
- Package Type : TO-220
- Mounting Type : Through Hole
- Maximum Power Dissipation : 30 W
- Minimum DC Current Gain : 15
- Transistor Configuration : Single
- Maximum Collector Base Voltage : 100 V dc
- Maximum Emitter Base Voltage : 5 V
- Maximum Operating Frequency : 1 MHz
- Pin Count : 3
- Number of Elements per Chip : 1
- Maximum Operating Temperature : +150 °C
- CODE No.:790-5494
