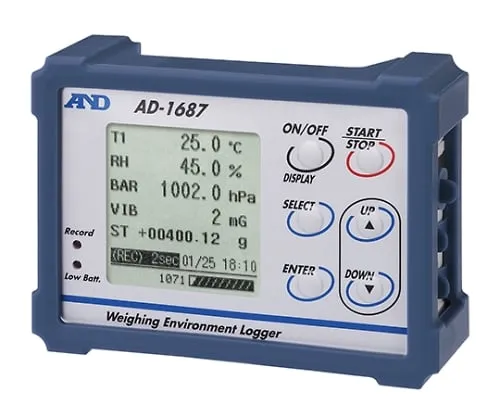

61-4679-10 Environmental Logger AD-1687 AD-1687
Product Description
Product Model: 61-4679-10Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4679-10
Product Brand: A&D
Features
- An environmental logger that measures the measurement value obtained from a balance or a scale, the measurement time, and the environment in which the measuring instrument is installed (Temperature, humidity, air pressure, vibration), and records the measurement value at the same time.
- Equipped with temperature, humidity, air pressure, and vibration sensors
- Measuring and recording 4 environmental data (temperature, humidity, air pressure, and vibration) simultaneously on its own
- Can record measurement data and environmental data in a set by connecting it to the RS-232 C output of the balance or scale
- Can transfer measurement data to a personal computer without the need for special software
- Number of stored data: up to 10,000 sets (with date and time)
- Operation cannot be guaranteed as connection to another company's equipment has not been verified.
Spec
- Recording data: Maximum 10,000 Set (with date, clocks)
- 1 data: One transmission that summarizes such as measuring value, temperature, humidity, barometric pressure , vibration
- File format: CSV file
- Power supply: Feeding from balance by RS-232C (also feed available from alkaline AA dry cell 2 pieces/USB)
- Battery life: About 6 months (measurement each time with alkaline cell only)
- Body dimensions/mass: 127 (W) x 90 (H) x 36 (D) mm/about 275g (including protector)
- Accessories: Instruction manual, for Balance, scale connection RS-232C communication cable 3 kinds (each 1m), PC connecting mini-B type USB cable (1 m), for monitor AA dry cell 2 pieces, AC adapter (for USB power)
