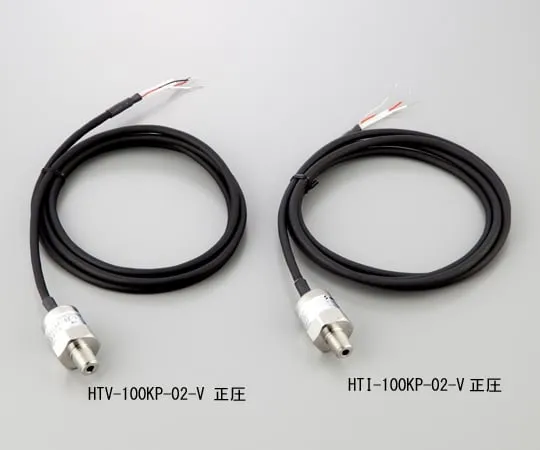

1-3763-05 Pressure Sensor HTVC-100KP-02-V
model:
1-3763-05
category:
toner
Product Description
Product Model: 1-3763-05 Features Gauge pressure sensor […]
Contact Us
Product Details
Product Model: 1-3763-05
Features
- Gauge pressure sensor with excellent durability and corrosion resistance.
- Welding types such as water and oil are suitable for pressure media such as gases and chemical liquids with high corrosion properties.
Spec
- Model number: HTVC-100KP-02-V
- Measurement range (kPa): -100℃ to +100 (compound pressure)
- Type: O-ring
- Conform medium: Gas, liquid
- Accuracy: +/-0.5%FS or less
- Linearity: +/-0.3%FS or less
- Excessive pressure: 200% of rated output
- Output: DC1 - 5V
- Liquid material: Diaphragm/stainless steel (SUS316L), Pressure port/stainless steel (SUS316), O-ring/fluorine rubber
- Connection port size: R1/4
- Power supply: DC12 - 28V
- Consumption current: 6mA or less
- Cable size: φ6mm x 2m
- Weight: Approx 170g
- Dustproof, waterproof: IP65
