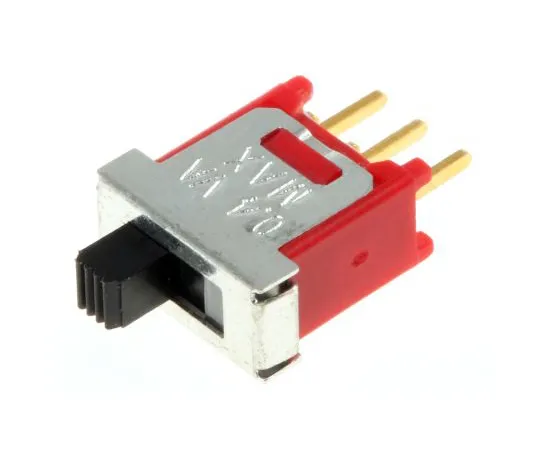

63-4621-11 RS PRO PCB Slide Switch Single Pole Double Throw (SPDT) Latching 400 mA @ 20 V Slide 429-498
Product Description
Product Model: 63-4621-11Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4621-11
Product Brand: RS PRO
Features
- RS - Micro Miniature Slide Switch - Substrate Mounting, 2.54 mm Terminal Spacing Vertical Type or Light Angle Type - Light Angle Type with 2 Additional Fixing Pins Replaceable with Phosphor Bronze Gold Plated Contact Ultra Miniature Toggle Switch Mechanical Life: 100,000 Times For Low Level Switching, Ideal For Applications Where Substrate Space Is Prioritized - Brass Actuator. Glass Fiber, UL94 Vo Flame Retardant Polybutylene Terephthalate (PBT) Case
Spec
- Contact Configuration:Single Pole Double Throw (SPDT)
- Mounting Type:PCB
- Switch Operation:Latching
- Contact Current Rating:400 mA @ 20 V
- Terminal Type:Through Hole
- Actuator Type:Slide
- Length:10.16mm
- Width:5.08mm
- Depth:9.2mm
- Dimensions:10.16 x 5.08 x 9.2mm
- Contact Resistance:20mΩ
- Mechanical Life:30000Operations
- Contact Material:Gold
- CODE No.:429-498
