Features

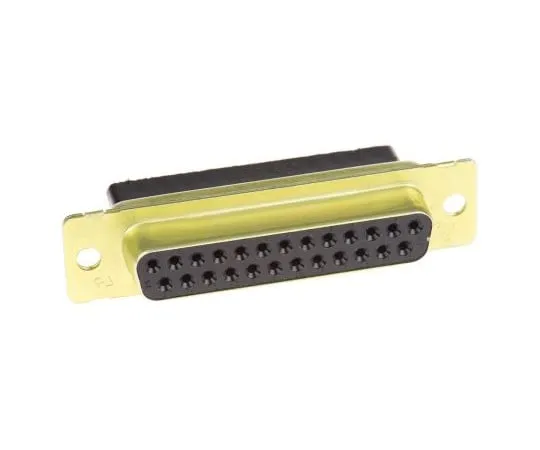

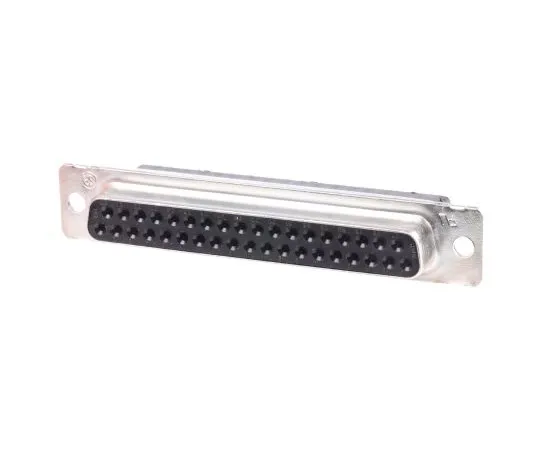

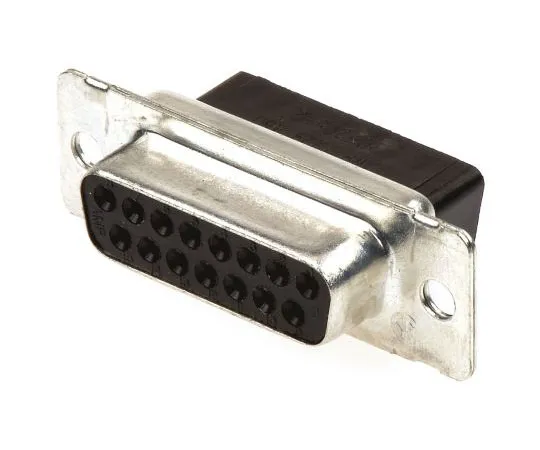

• AMPLIMITE D-Sub Cable Connector HDP-20 Crimp Snap-In Contact Series. AMPLIMITE HDP-20 Crimp Snap-In contact d-sub plug and receptacle connectors for standard cable mounting. These AMPLIMITE HDP-20 Crimp Snap-In d-sub cable connectors have 94V-0 black thermoplastic inserts and are available with tin or zinc plated steel shells and with or without grounding indents (see table for details). There is also a choice of mounting options; standard 3.05mm holes or clinch nuts (see table for details). The AMPLIMITE HDP-20 d-sub plug cable connectors accept 20 DF pin contacts and the AMPLIMITE HDP-20 d-sub receptacle cable connectors accept size 20 DF socket contacts see stock number ; 446-787 446-787 typically. These HDP-20 Crimp Snap-In d-sub cable connectors will mate with the HDE, HDP series of cable mount d-sub connectors and HD-20 d-sub Board Mount connectors. For suitable backshells or cable clamps see stock numbers ; 450-9113 450-9113 , ; 450-9157 450-9157 , ; 680-9276 680-9276 , ; 717-4596 717-4596 and ; 680-9131 680-9131 typically. For male screw retainers see stock numbers ; 450-9208 450-9208 and ; 717-4498 717-4498 typically For female screwlocks see stock numbers ; 717-4543 717-4543 and ; 450-9270 450-9270 typically For locking post assembly see stock number ; 450-9365 450-9365 For spring latch see stock number ; 450-9321 450-9321 For latching block with threaded hole see stock number ; 450-9371 450-9371 typically For latching block with slot recess and thru hole see stock number ; 680-9392 680-9392. Suitable for communication/data interfaces Tin or zinc plated shells Contacts, with a high retention force, snap-fit into the rear of the shell insulators
