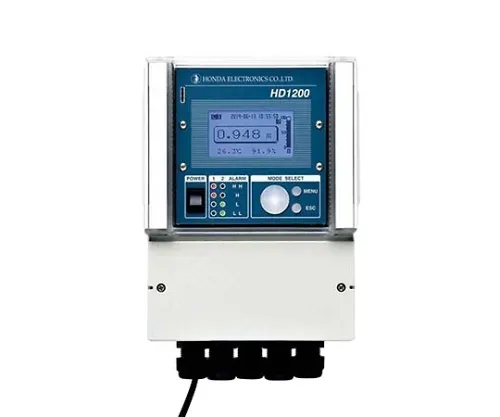

61-0173-73 Ultrasonic Air Level Meter HD1200
Product Description
Product Model: 61-0173-73Product Brand: Honda Electroni […]
Contact Us
Product Details
Product Model: 61-0173-73
Product Brand: Honda Electronics Co., Ltd.
Features
- Unique level detection algorithm with DSP. Eliminates the effects of noise and unwanted reflections for stable measurement.
- Two sensors can be connected to one body. Different types of sensors can be selected so that one can measure two different ranges.
- Log to microSD (TM) card.
- Cough type flow meter function is standard.
- Main applications and *** cases Control the level of liquids and contaminants in tanks in the equipment. Measurement of water levels in lakes, swamps, and rivers. Cough type flow measurement.
Spec
- Number of channels: 2
- Frequency: 10 - 60kHz (select according to sensor specification)
- Measurement target: Liquid, powder
- Distance measurement range: 0.3 - 60m (select according to sensor specification)
- Resolution: Measurement: 1mm: Display: 1mm
- Accuracy: ±0.25%F.S. (±3cm)
- Data update cycle: Approximately 2 seconds (differs dep***ing on sensor specification)
- Sensor oriented angle (half of full angle of sound pressure): 12 - 22° (differs dep***ing on sensor specification)
- Power, voltage: 100 - 240VAC ±15%, Power consumption 10VA
- Display: LCD display (with backlight)
- Alarm output: Each channel 4 points, AC250V: 5A (relay contact), 4-20mA current output, resolution 1/4000 (maximum load resistance 600Ω)
- Interface: RS-485 (transmission distance: Within 1200m), RS-232C (transmission distance: Within 10m)
- External memory: MicroSD? card
- Ambient temperature range: -20 - 70℃
- Material: ABS
- Structure: IP66 equivalent
- Outer dimensions: 176 (W) x 84 (D) x 237 (H) mm
- Mass: 1.8kg
