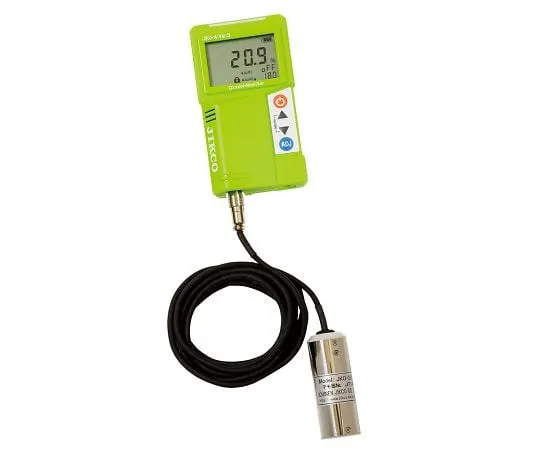

3-156-12 Oxygen monitor (with automatic air correction function) Sensor-separated, portable JKO-AL3-K
Product Description
Product Model: 3-156-12Product Brand: ICHINEN JIKCO Ltd […]
Contact Us
Product Details
Product Model: 3-156-12
Product Brand: ICHINEN JIKCO Ltd.
Features
- Automatic "air correction" saves you the trouble of making corrections.
- It is equipped with a barometric pressure sensor to prevent malfunction due to the influence of pressure changes such as typhoons.
- The "maintenance notification" function will inform you of the inspection date.
- "Sound ON/OFF" can be selected (alarm contact ON/OFF can also be set) and can be ***d only for concentration measurement.
Spec
- Sensor specifications: Separate and portable
- Power Specifications: AA Battery
- Number of pieces: 1
- Detection principle: Galvani battery type
- Resolution: 0.1%
- Accuracy: +/- 0.5% (0.0 ~ 25.0%), +/- 3.0% (over 25.1%)
- Measuring range: 0 ~ 100%
- Response time: 20 seconds or less (90% response)
- Size: 82 x 38 x 145 mm
- Alarm: electronic buzzer, two red LEDs
- External output: alarm output/analog output (0 ~ 1 VFS)
- Power supply: AA batteries/4 (included for testing), external power supply/AC adapter (100 VAC)
- Weight: 315 g
- Lead wire length: 3 m
