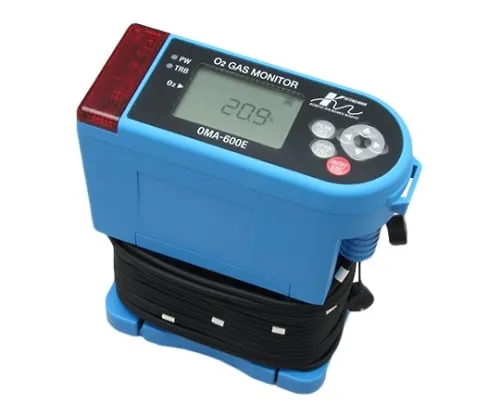

61-9735-01 Diffusion Portable O2 Monitor OMA-600E
Product Description
Product Model: 61-9735-01Product Brand: KITAGAWA, KOMYO […]
Contact Us
Product Details
Product Model: 61-9735-01
Product Brand: KITAGAWA, KOMYO RIKAGAKU KOGYO K. K.
Features
- * Please let us know the address on the certificate.
- Oxygen levels are measured to signal the risk of oxygen deficiency before entering areas where oxygen-deficient air may erupt or where oxygen may be depleted (Tunnels, manholes, common ditches, etc.). The sensor cord has a white mark indicating the length of each meter, so you can see the approximate distance when measuring points such as the bottom of the manhole are far away.
- 1. EX Explosion-Proof Standard Accepted Product (Exia II CT4X TC No. 20164)
- 2. Japan Maritime Association (NK) Type Test Accepted Product
- 3. When the power is turned on, the battery capacity, battery display, sensor check and span adjustment are fully automatic.
- 4. Digital display and lighting function are provided for various messages such as density display, battery change, sensor abnormality, etc.
- 5. Peak hold function is provided.
- 6. Optional remote measurement (sensor cord of 5 m to 30 m can be ***d) (Standard accessory sensor cord of 5 m)
Spec
- Gas sampling method: Diffusion (sensor immersion type)
- Measurement target gas: Oxygen (O2)
- Measurement principle: Galvanic battery type
- Measurement range: 0.0 - 50.0vol%
- Minimum display digit: 0.1vol%
- Indication accuracy: 0.0 - 25.0vol%: +/-0.5vol%, 25.1vol% or more: +/-3.0vol%
- Concentration display: Liquid crystal, digital
- Alarm method: LED lamp, LCD display, Buzzer
- Alarm settings: 18.0vol%
- Explosion-protection: ExiaIICT4X (No. TC20164)
- Response time: 90% response, 15 seconds or less (not include gas introduction tube in this regard) at 20℃)
- Alarm accuracy: ±0.5vol% to alarm setting value 18.0vol%
- Power supply: AA alkaline dry cell (LR6) 3 pieces
- Continuous *** time: Approx 2500 hours (with no alarm)
- Operating temperature range: - 10 - 40℃ (Humidity: 30 - 85%RH, Non-condensing)
- Dimensions: 160 (W) x 93 (H) x 65 (D) mm
- Body mass: Approximately 740g (including battery, sensor cable)
- Accessories: Sensor cable (5m), Carrying case
- Operation pressure range: 80 - 110kPa
