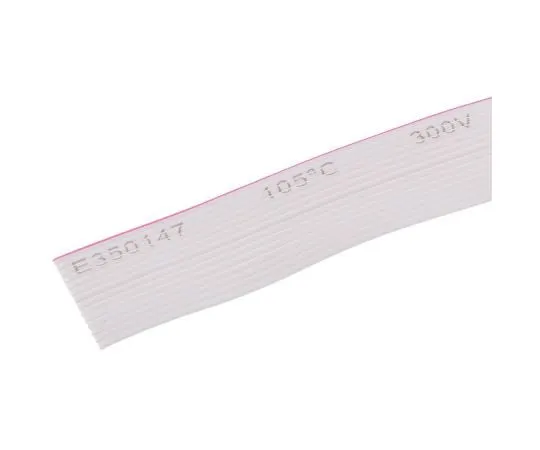

63-2999-21 RS PRO 14 Way Unscreened Flat Ribbon Cable, 17.8 mm Width, 5m 289-9852
Electronic/Electrical Parts and Controll Equipments

63-2999-21 RS PRO 14 Way Unscreened Flat Ribbon Cable, 17.8 mm Width, 5m 289-9852

model: 63-2999-21
brand: RS PRO

Product Description

Product Model: 63-2999-21Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-2999-21
Product Brand: RS PRO

Features

  • These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies. IDC Ribbon Cables. Suitable for *** with all commonly available IDC connectors.Consists of parallel stranded tinned copper wire conductors laminated between layers of grey PVC film to form a flat ribbon cable suitable for *** with Speedbloc® insulation displacement connectors. Pitch between conductors 0.05in/1.27 mm. One edge has a red marker to indicate the first conductor. May be split into any number of ways by tearing between conductors. The laminate ensures precise alignment and spacing between conductors, essential during assembly with the connectors.,Each conductor is formed from 7 strands of 36 awg (0.13 mm diameter.), 28 awg overall (0.08 mm 2 ). UL recognised style 2651.

Spec

  • Quantity:1roll(5m)
  • Number of Ways : 14
  • Pitch : 1.27mm
  • American Wire Gauge : 28
  • Reel Length : 5m
  • Width : 17.8 mm
  • Cable Shape : Ribbon
  • Sheath Colour : Grey
  • Voltage Rating : 300 V
  • Screened/Unscreened : Unscreened
  • Conductor Strand Type : Stranded
  • Number of Strands : 7
  • Minimum Operating Temperature : -20°C
  • Maximum Operating Temperature : +105°C
  • Size of Strands : 0.13 mm
  • CODE No.:289-9852
