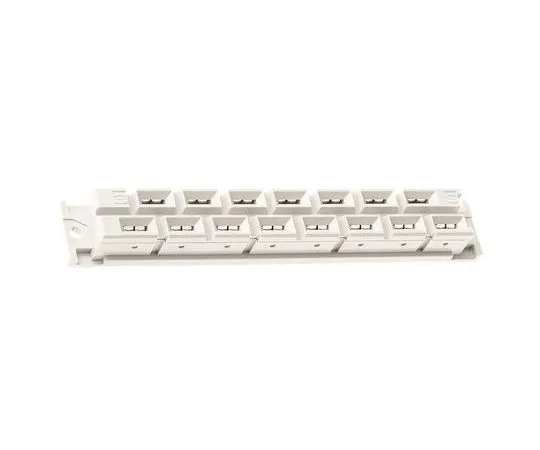

63-5044-37 HARTING 09 06 Series 15 Way 10.16mm Pitch, Type H15 Class C1, 2 Row, Straight DIN 41612 Connector, Socket 9062152812
Product Description
Product Model: 63-5044-37Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-5044-37
Product Brand: HARTING
Features
- Harting DIN 41612 Type H15 High Current Sockets. Harting DIN 41612 Type H high current sockets high-current backplane sockets, a durable range of DIN 41612 Type H connectors suitable for many applications including railway transportation and power supplies. Stock numbers ; 757-7986 757-7986 and ; 757-7948 757-7948 are railway approved with a railway classification of NFF 16-101, Smoke index: F1, Flammability class: I2. Low profile connector has 4mm solder tails Cage-clamp type accepts wires 0.14 to 1.5mm² Faston type has 6.3 x 0.8mm male blades
Spec
- Quantity：1piece
- Number of Contacts : 15
- G***er : Female
- Number of Rows : 2
- Body Orientation : Straight
- Termination Method : Solder
- Row Loading : z/d
- Type : H15
- Pitch : 10.16mm
- Contact Plating : Silver
- Class Rating : C1
- Current Rating : 15A
- Contact Material : Copper Alloy
- Maximum Contact Resistance : 8mΩ
- Voltage Rating : 500 V ac
- CODE No.:740-7017
