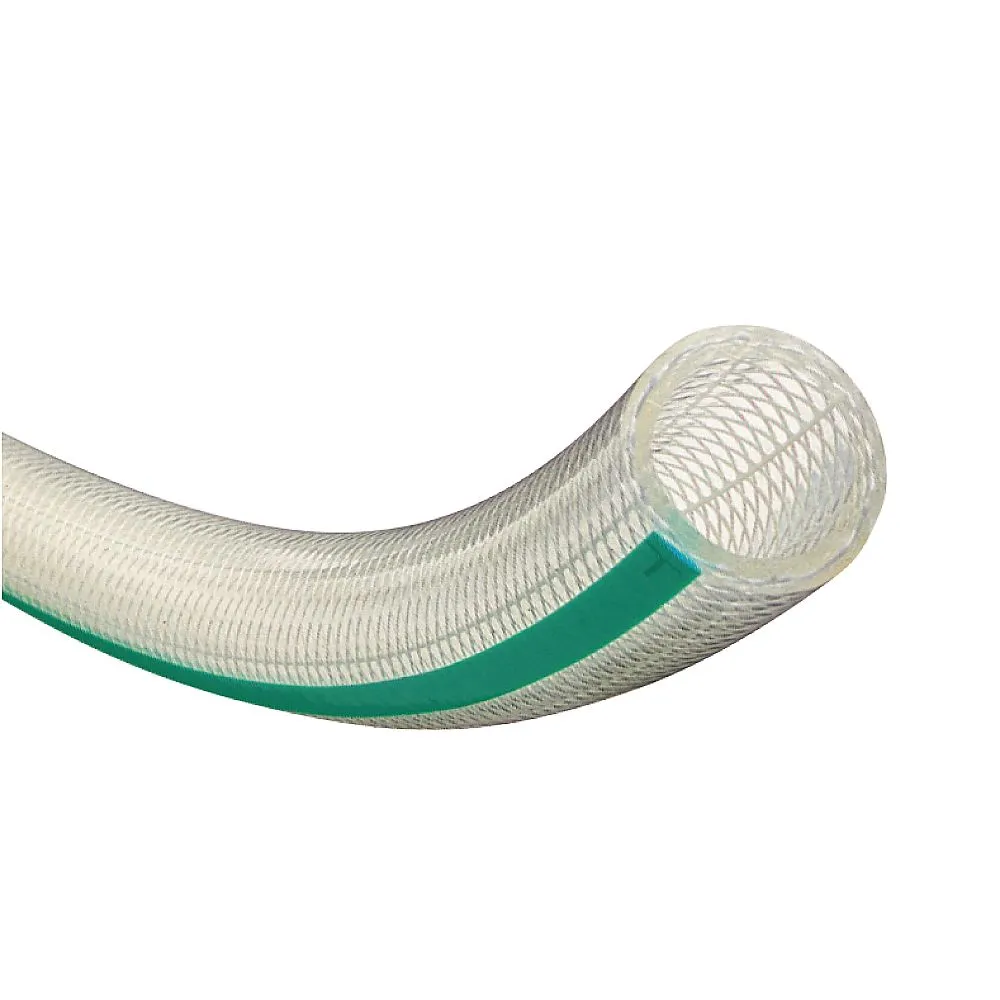

65-0864-75 Toyo Foods Hose for transportation of various foods and drinking water, etc. TFB-50-1
Product Description
Product Model: 65-0864-75Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0864-75
Product Brand: TOYOX CO., LTD.
Features
- "Main application": For transportation of food, beverages, oils and fats, etc. "Food compatible": Uses non-phthalic acid plasticizer for food, beverages, oils and fats. Pressure resistant blade hose for pressure feeding made of soft vinyl chloride.
- Heat Resistant Blade Hose: Heat Resistant Pressure Resistant Blade Hose that can be safely ***d up to 70°C. Oil Resistant: This is a pressure resistant hose that complies with the Food Sanitation Law and is safe and has a long life beca*** the hose does not harden even with oil and food.
- Compliance with Law: Compliance with Food Sanitation Law (the Ministry of Health, Labour and Welfare Notification No. 196), FDA Compliance: Compliance with RoHS2 (as of October 2021)
Spec
- Inner diameter x Outer diameter (mm): 50 x 62
- Pressure (Mpa): 0 to 0.3
- Operating temperature range: -5 to 70 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Polyester Yarn
- Minimum b***ing radius: 440 mm
