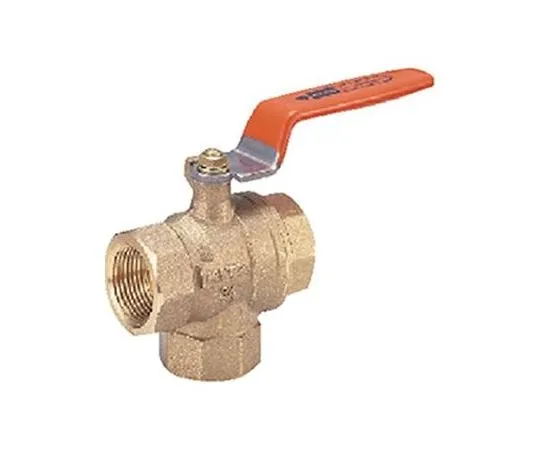

65-1874-07 T-ball Series vertical Three-Way T-ball Valve (TV2L) Nominal Diameter 10 mm TV2L10A
Product Description
Product Model: 65-1874-07Product Brand: KITZ CORPORATIO […]
Contact Us
Product Details
Product Model: 65-1874-07
Product Brand: KITZ CORPORATION
Spec
- Nominal diameter (mm): 10
- Nominal diameter (inches): 3/8
- Dimensions Between Men (mm): 46.0
- Pressure: Type 400
- Connection: Threaded: JIS B 0203
- Operation: Lever
- Main unit material: C 3771 BE
- Grand Packing material: Glass Fiber in PTFE: 1/4 B/3/8 B
- Zisk material: C 3771 BE + Cr Plating
- Body Seating Ring material: PTFE
- Bonnet material: C 3771 BE
- Bore diameter: Standard bore
- Code: 0302TV2L0010
