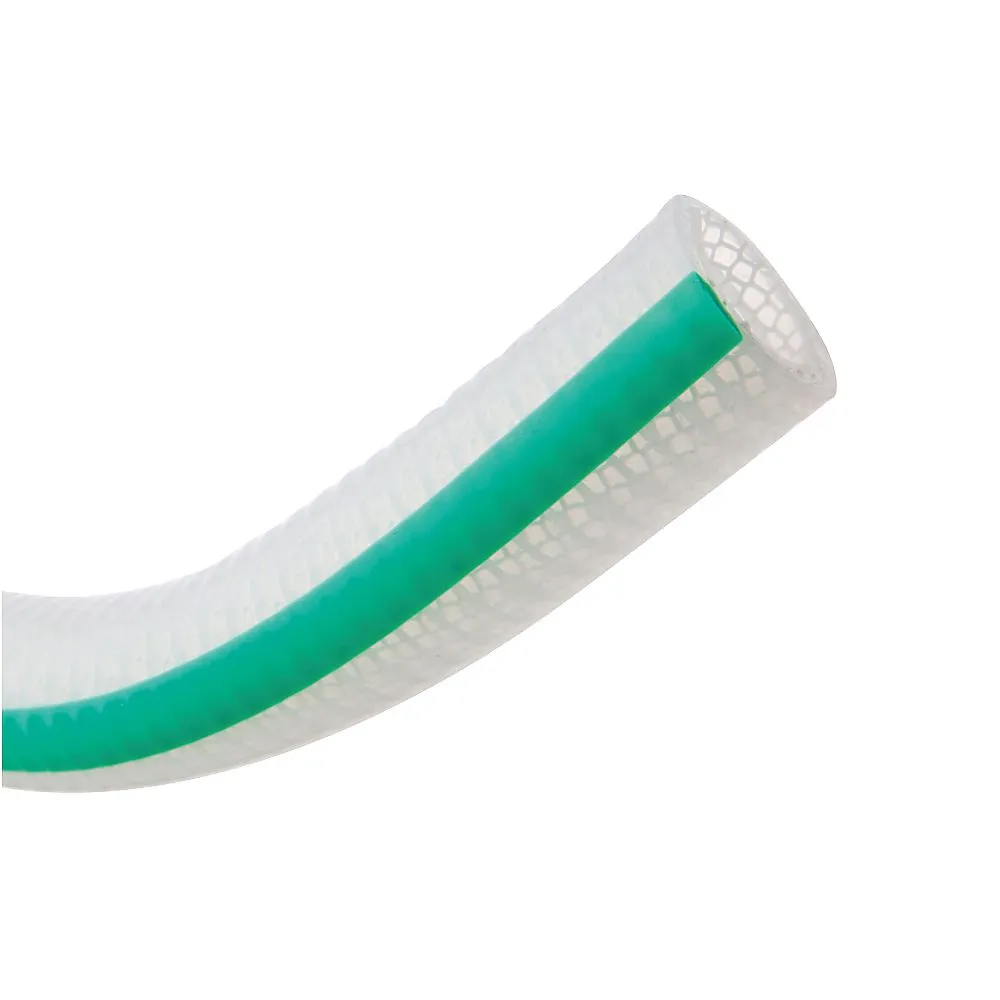

65-0861-63 Hybrid Toyo Silicone Hose for Filling Machine, Food Machinery, Cooling Device, Heat Resistant Piping HTSI-38-1
Product Description
Product Model: 65-0861-63Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0861-63
Product Brand: TOYOX CO., LTD.
Features
- Heat and cold resistance: This is a pressure resistant hose made of silicone rubber for pressure feeding and suction. Heat-resistant hose that can be ***d in a wide range of temperatures from -30°C to 130°C.
- Prevents the hose from breaking or collapsing even in a narrow place with a small b*** radius.
- Can be pressed and sucked. The reinforcing material is resin, so it is safe without rusting.
- "Safe and secure": Can be ***d as a safe and secure heat-resistant hose, taking advantage of its characteristics such as low elution, insulation, and low odor.
- "Flexibility": More flexible than rubber hose or PVC hose and easier to pipe.
- Safe and secure in compliance with Food Sanitation Law, FDA (Food and Drug Administration) registered products and RoHS2 am***ed regulations. Can be ***d safely as a food hose.
Spec
- Inner diameter x Outer diameter (mm): 38.1 x 50.5
- Pressure (Mpa): -0.05 to 0.5
- Operating temperature range: -30 to 130 °C
- Length: 1 m
- Material: Body/Silicone Rubber, Reinforcing Material/Polyester Thread, Heat Resistant Special Plastic
- Minimum b***ing radius: 290 mm
