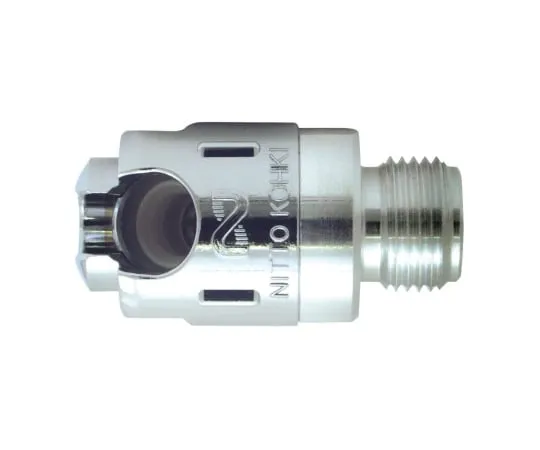

65-9568-28 Paint Coupler mating screw size: G3/8 mass (g): 48 L (mm): 47 PE-3S-GALPFA
Product Description
Product Model: 65-9568-28Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9568-28
Product Brand: NITTO KOHKI CO., LTD.
Features
- For paint.
- The unique swing connection method allows easy connection and separation of the air spray gun and hose even while wearing work gloves.
- With a full flow structure, it is difficult to accumulate paint waste.
- It ***s resin packing with excellent solvent resistance, maintains excellent durability and stable function, and is also suitable for air spray gun cleaning work at the *** of work.
- It adopts a structure that can be connected and separated even if paint adheres to the sleeve.
- The compact and lightweight design (approx. 80 g when connected) reduces the load on the operator by reducing the hand weight.
- Equipped as standard with a lock function to prevent unexpected separation.
Spec
- Mating Side Mounting Screw Size: G3/8
- Mass (g): 48
- L(mm):47
- ΦD(mm):27
- H (mm): two sides 23
- T:G3/8
- Valve Structure: One Way Opening/Closing Type
- Applicable Fluid: Solvent Paint
- Body Material: Aluminum Alloy
- Maximum Working Pressure (MPa{kgf/cm2}): 1.0{10}
- Pressure Capacity (MPa{kgf/cm2}): 1.5{15}
- Seal Material: Fluororesin
- display symbols: PFA
- Operating Temperature Range (°C): 0 to +50
- Remarks: Standard Material
- Recomm***ed maximum tightening torque (N · m{kgf · cm}): 15{153}
- Type: Socket
