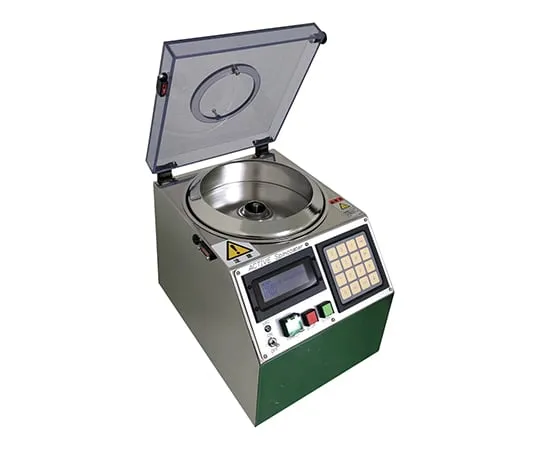

3-8278-02 Spin Coater ACT-220AII (Main Unit) ACT-220AⅡ
Product Description
Product Model: 3-8278-02Product Brand: ACTIVE Features […]
Contact Us
Product Details
Product Model: 3-8278-02
Product Brand: ACTIVE
Features
- It is suitable for development and evaluation applications using various solutions.
- Safety cover and interlock magnetic sensor are standard.
- It has a multi-stage program memory with 10 steps and 100 patterns (switchable to 50 steps and 20 patterns). Please specify when ordering).
- One-touch connectors are attached to the body and vacuum pump side for easy tube connection.
Spec
- Specifications: ACT-220AII (body)
- Applicable substrate size (mm):φ 5 toφ 100 (Maxφ 4 inches, □ 70)
- Cup size (mm):φ 220 (inside diameterφ 217)
- External dimensions (mm): 250 x 330 x 272 (with safety cover closed)
- Power supply: 1φ 100 V-10 A (200W AC servo motor) 50/60Hz
- Rotational control speed (rpm): 0~7000
- Rotational accuracy (rpm): +/-1
- Main body exterior cover/cup material: Electrolytic polishing standard made of stainless steel (Teflon coating is available)
- Weight (kg): 18
- *When using the main unit, a vacuum pump and a sample stand are required.
- *It can be custom-made. Please inquire.
- *If you request only optional items such as a sample stand, please tell us the serial number (S/No) of the active spin coater you are using.
- *Customized and reworked.
