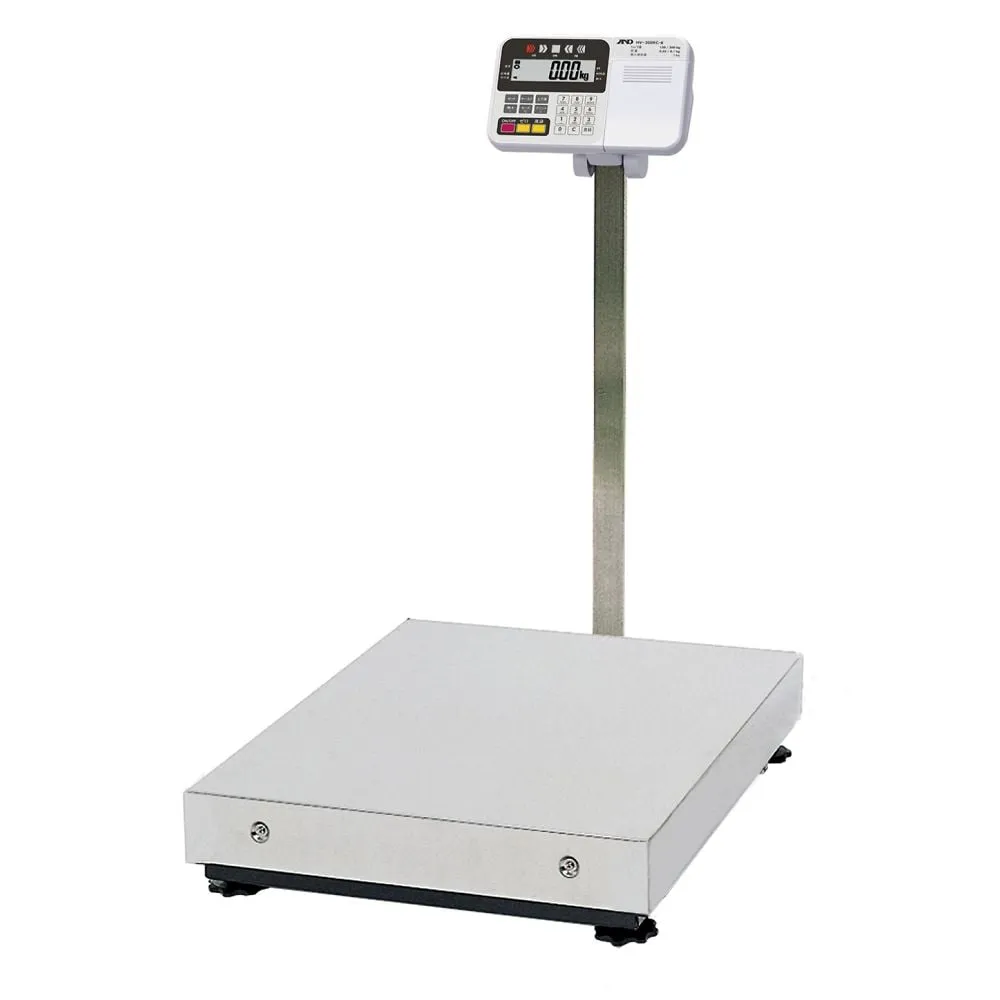

64-0694-54 Large Digital Scale HV-C-K Series with Certification HV300KC-K
Product Description
Product Model: 64-0694-54Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 64-0694-54
Product Brand: A&D
Features
- [Application]
- For transactions and certifications. Material weight measurement at the factory, confirmation of the number of parts, confirmation of the weight of waste materials at the construction site.
- [Features]
- Large platform for heavy goods with verification
- Accuracy grade 3 for trade certification (verified products).
- Please specify the area to *** when ordering.
- Large platform for heavy goods is a scale.
- Dual range: The amount of the item (minimum display) varies dep***ing on the measurement value.
- It has a 3-color, 5-level comparator light + numeric keypad.
- Selectable output system (sold separately): USB/RS-232C (D-Sub9P male)/Relay/Buzzer
- Detachable stainless steel measuring dish (SUS430).
- The backlit LCD display.
- kg/Number of pieces mode
- Add/Accumulate function: Add multiple measurement results ~ Total value display at the ***
- Number of pieces function: Number of screws and washers can be counted.
- Support for various commands: Measurement value request/tare bag pull, tare bag pull value input/comparator upper and lower limit value request & input is also possible.
- Easily set with numeric keypad.
- The display can be adjusted upward in four steps.
Spec
- Weighing: 300 kg
- Weight: 0.05 kg (0 to 150 kg)/0.1 kg (150 to 300 kg)
- Range of ***: 1 kg to: 300 kg
- Display Units: kg/pcs
- weighing tray Dimensions: 600 (W) x 700 (D) mm
- external dimensions/Mass: 600 (W) x 943 (D) x 942 (H) mm/45 kg
- Power Supply: AC Adapter (included) or D size battery battery 4 pieces (sold separately)
- Measuring method: Electrical Resistance Wire Type (Load Cell Type)
- Accessories: Display Cover (AXP -3003217 D) AC Adapter bolt for pole mounting
- *Be sure to check your area of *** and specify it when ordering.
