Features

• Description

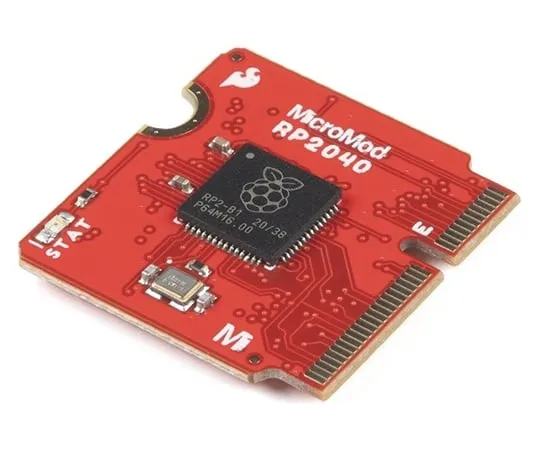

• The SparkFun MicroMod Pi RP2040 Processor Board is a low-cost, high-performance board with flexible digital interfaces featuring the Raspberry Pi Foundation's RP2040 microcontroller. With the MicroMod M.2 connector, connecting your MicroMod Pi RP2040 Processor Board is a breeze. Simply match up the key on your processor's beveled edge connector to the key on the M.2 connector and secure it with a screw(included with all Carrier Boards).
• The RP2040 utilizes dual ARM Cortex-M0+ processors(up to 133MHz):264kB of embedded SRAM in six banks
• 6 dedicated IO for SPI Flash(supporting XIP)
• 30 multifunction GPIO:Dedicated hardware for commonly ***d peripherals
• Programmable IO for ext***ed peripheral support
• Four 12-bit ADC channels with internal temperature sensor(up to 0.5 MSa/s)
• USB 1.1 Host/Device functionality
• The RP2040 is supported with both C/C++ and MicroPython cross-platform development environments, including easy access to runtime debugging. It has UF2 boot and floating-point routines baked into the chip. The built-in USB can act as both device and host. It has two symmetric cores and high internal bandwidth, making it ***ful for signal processing and video. While the chip has a large amount of internal RAM, the board includes an additional external flash chip.
• MicroMod is a modular interface ecosystem that connects a microcontroller "processor board" to various "carrier board" peripherals. Utilizing the M.2 standard, the MicroMod standard is designed to easily swap out processors on the fly. Pair a specialized carrier board for the project you need with your choice of compatible processor!
• Get Started with the MicroMod RP2040 Processor Guide
• Features
• RP2040 General Features
• Dual Cortex M0+ processors, up to 133 MHz
• 264 kB of embedded SRAM in 6 banks
• 6 dedicated IO for QSPI flash, supporting execute in place(XIP)
• 30 programmable IO for ext***ed peripheral support
• SWD interface
• Timer with 4 alarms
• Real time counter(RTC)
• USB 1.1 Host/Device functionality
• Supported programming languages
• MicroPython
• C/C++
• Specific Peripherals made available on MicroMod RP2040
• 1x USB dedicated for programming and debug(Host capable)
• 2x UARTs
• 2x I2C
• 2x SPI
• 29x GPIO
• 2x Digital Pins
• 3x Analog Pins
• 16x PWM
• 128Mbit/16MB(external)flash memory
• Status LED
• VIN Level ADC
