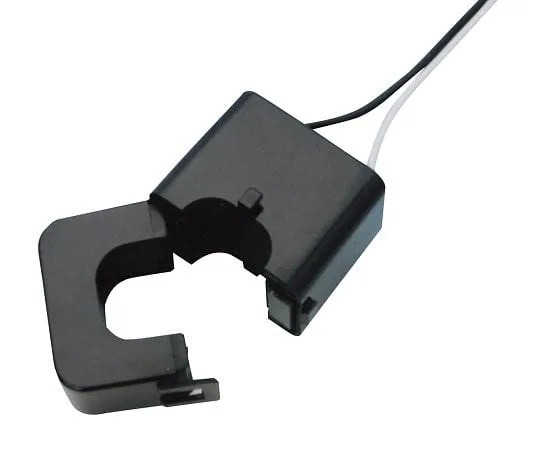

4-331-01 Clamped AC Current Sensor (Medium/Power Equipment - φ24/300 Arms) CTL-24-CLS
Product Description
Product Model: 4-331-01Product Brand: u-rd Features Thi […]
Contact Us
Product Details
Product Model: 4-331-01
Product Brand: u-rd
Features
- This is a medium/large current CT that can handle wires up to 24 mm in diameter.
- It is a nylon spring one-touch clamp type that can be easily attached to existing equipment such as a distribution board.
- It supports a wide range of currents up to 0.1~300 A.
- Built-in clamp element is safe even when CT secondary side is opened when live wire is installed.
Spec
- Weight (g): 70
- Applicable current: 0.1 to 300 Arms (50/60Hz)
- Maximum allowable current: 360 Arms continuous
- Secondary turns (n): 1980 ± 2 turns (With 3.0 V clamp element)
- Voltage: AC 2000 V/1 minute (Core to output lead wire)
- Insulation resistance : DC 500 V , 100 MΩ or more (Core to output lead wire)
- Size: 45 x 64 x 34 mm (excluding projections)
