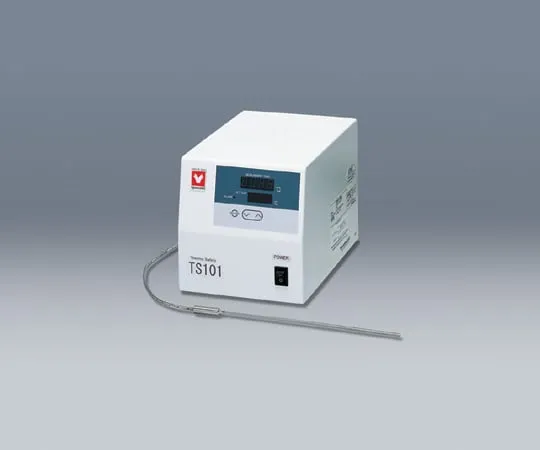

2-1985-01-56 Overheat Protection Device with English Calibration Certificate TS101
Product Description
Product Model: 2-1985-01-56Product Brand: Yamato Scient […]
Contact Us
Product Details
Product Model: 2-1985-01-56
Product Brand: Yamato Scientific Co., Ltd.
Features
- Prevents abnormal overheating during operation and securely shuts off the power to the equipment.
- Just by connecting to your thermostat or thermostat water tank, you can prevent abnormal overheating.
- In the unlikely event of an error, an error indication and a buzzer are displayed at the same time as the unit stops.
- Set temperature can be keylocked.
Spec
- Setting range: 0 ~ 500 degrees Celsius
- Input power: 100 VAC
- Temperature detection accuracy: +/- 1 degrees C
- Sensor: K thermocouple
- Sensor size: phi 3.2 x 200 mm
- Power cutoff capacity: 100 VAC 14.5 A
- Temperature display system: Digital display (sensor temperature and set temperature display)
- Overheat temperature sensing operation: Turn off power to the target device, alarm notification by buzzer, and alternate display of Er07 and sensor-detected temperature on the measuring temperature screen
- Alarm output: a Contact 250 V 3A
- Safety device: F***/Self-diagnostic function (temperature input error/memory error)
- Target device connection method: 3P power cord connection terminal block
- Power supply: 100 VAC 50/60 Hz 0.5 A/3 P without power plug/breaker
- Power cord length: approx. 2 m
- External dimensions: 150 x 210 x 155 mm (excluding protrusions)
- Weight: approximately 3.5 kg
- Accessories: Sheath-Type K Thermocouple (Immersion part 200 mm), Body Fixing Bracket
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
