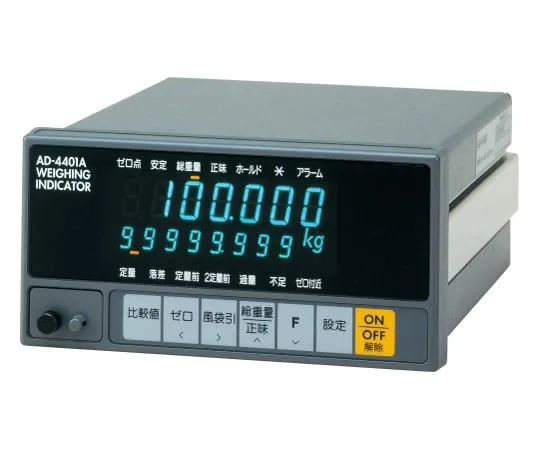

62-3147-38 Indicator AD-4401A
Product Description
Product Model: 62-3147-38Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-38
Product Brand: A&D
Features
- Wing indicator with compact body, high performance A/D converter, and versatile functions
- Capable of cutting control and sorting and weighing, versatile from hopper/packer to check scale.
- Responsive to weight changes.
- Small DIN size.
- Various weighing modes.
- Quantitative quantity, cumulative weight, cumulative frequency, etc. can be displayed in the sub display section.
- Digital span feature. Automatic integration function. Fuzzy automatic head correction function. Supplementary input function.
Spec
- Input sensitivity: 0.3 μV/D or more
- 0 Adjustment Range: 0 mV to 20 mV
- Load cell applied voltage: DC 10 V, ± 5%, 230 mA, with remote sensing function
- Maximum load cells: 350 Ω Load cells can be connected up to 8 pieces
- Temperature coefficient: ± (0.2 μV + 0.008% ofDeadLoad)/°CTyp., Span ± 0.0008%/°CTyp.
- Nonlinearity: 0.01% ofF.S.
