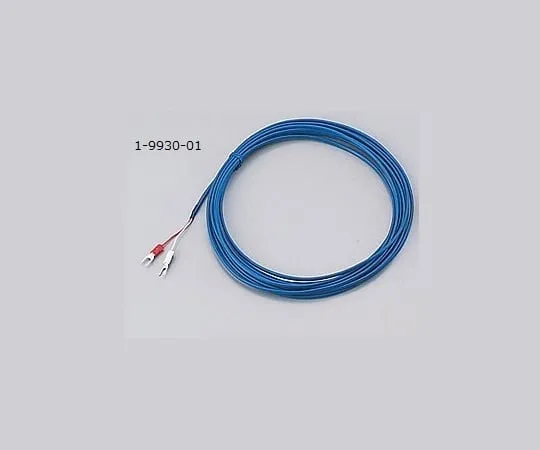

1-9930-01-20 Coated Thermocouple (Duplex) Vinyl Coated Y Terminal 5 m with Calibration Certification DK-K-BL-5m
Product Description
Product Model: 1-9930-01-20Product Brand: Sato Keiryoki […]
Contact Us
Product Details
Product Model: 1-9930-01-20
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- K Vinyl Coating Type of Thermocouple
- Even if you cut it at the required length, you can *** it right away by connecting the tips together or by welding.
- Can be connected to a terminal block type recorder, indicator, portable thermometer, and data logger. *The sensor is connected to the Y terminal.
Spec
- Covering Material: Vinyl
- specifications: terminal crimping Y terminal
- Y-Terminal Size: Outer 6.4 mm x Inner 4.3 mm
- Heat-resistant Temperature: 90 °C
- Wire Diameter : φ 0.32 mm
- Lead wire length: 5 m
- duplex
- *Pay attention to the measurement environment.
- Securities Code: 8970 -22
- *Calibration certificated products are AZONE's original service in which measuring instruments are calibrated at the time of shipment from AS ONE (AS ONE subcontractor) and calibration certificate is issued.
- This product is general calibration. calibration certificate (calibration certificate test results report Traceability System Diagram) is attached.
- calibration certificate is Japanese.
- Calibration points are 2 points of 23 °C and 80 °C. For other points, please contact us separately.
