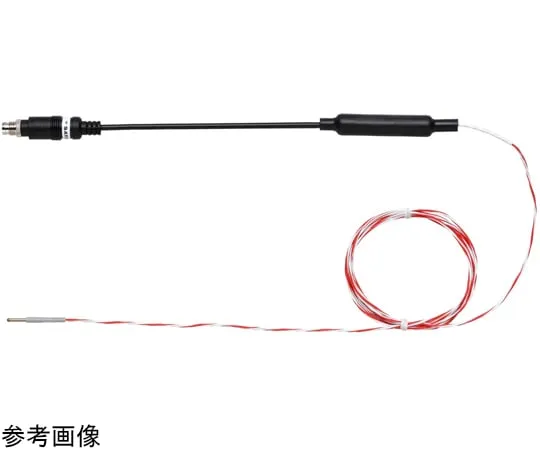

65-1845-68 PT Sensor for Memory Meter R L 753 (PTFE Coated/Low Temperature) SK-L753-1
Product Description
Product Model: 65-1845-68Product Brand: Sato Keiryoki M […]
Contact Us
Product Details
Product Model: 65-1845-68
Product Brand: Sato Keiryoki Mfg. Co., Ltd.
Features
- Sensor for Memory Meter ® SK-L753.
- Ultra-fine type, for gaps in doors, etc. - Waterproof JIS C0920 IPX5 compliant. - The sensor ***s a heat-resistant and cold-resistant cable that can pass through narrow gaps with a protective tube part of phi2 and a tip shrink tube of 3 mm.
Spec
- Securities Code: No. 8860 - 01
- Temperature sensor: 4-wire platinum thermometer resistor (Pt 100 ohm)
- Measuring range: - 99.9 ~ 100.0 degrees C
- Accuracy: +/- (0.15 degrees C + 0.002 | t |)
- *| t | is the absolute value of the measured temperature
- JIS A Class equivalent
- Dustproof and waterproof: JIS C 0920 IPX5 compliant (when indicator is connected)
- Material: Sensor part/SUS 316, Connector part/PVC resin, Cord/PTFE resin
- Dimensions: sensor part/approx. Phi2 x L 20 mm (protective tube part approx. Phi3), connector part/approx. Phi 12 x L 40 mm, cord/approx. 2.1 m
- Mass: About 22 g
