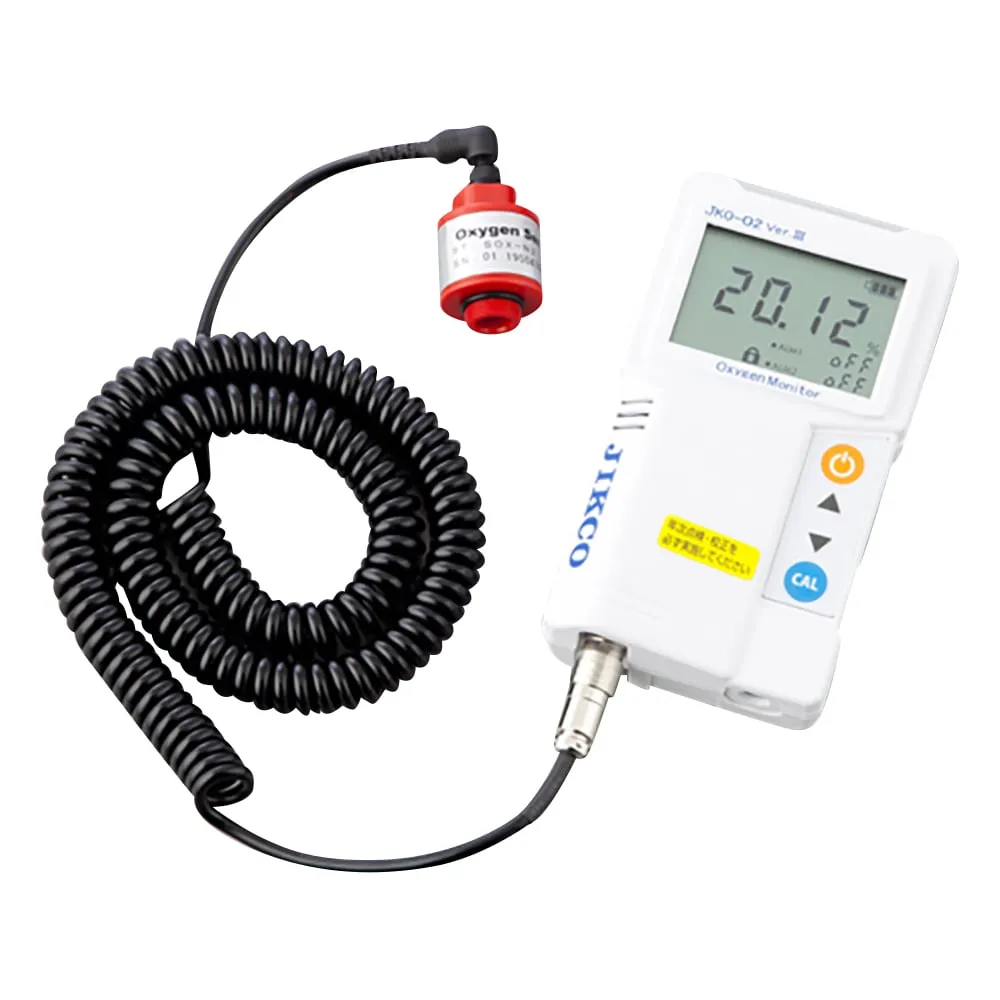

1-9499-11 Low Concentration Oxygen Monitor JKO-O2LJD3
Product Description
Product Model: 1-9499-11Product Brand: ICHINEN JIKCO Lt […]
Contact Us
Product Details
Product Model: 1-9499-11
Product Brand: ICHINEN JIKCO Ltd.
Features
- Equipped with highly responsive sensor to allow measurement of residual oxygen concentration even in areas with extremely low density.
- Sensor is threaded（M16 P1）so that it can be directly connected to the device, or inserted directly into the line using inline jig（sold separately）for oxygen concentration measurement.
Spec
- Model number: JKO-O2LJD3
- Detection principle: Galvanic battery type
- Alarm: Second step (arbitrary changes available), Intermittent electronic buzzer sound (80dB), red LED flashing x 2
- Alarm output: Relay no voltage 1c contact, Maximum load capacity/50mA, 30VDC
- Analog output: 4 - 20mA (FS)
- Power supply: AA alkaline dry cell x 4 (included for test) or AC adapter (included)
- Size: 82 x 38 x 145mm
- Weight: Body/190g, Sensor unit/140g
- With wall-mounted bracket
- Measurement range: 0 - 25.00%
- Resolution: 0.1％
