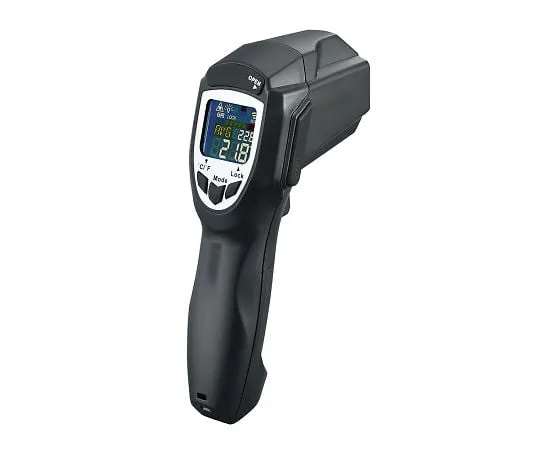

3-097-01-56 Radiation Thermometer (with dual laser points) with English Calibration Certificate TN49SJBUG
Product Description
Product Model: 3-097-01-56Product Brand: AS ONE Corpora […]
Contact Us
Product Details
Product Model: 3-097-01-56
Product Brand: AS ONE Corporation
Features
- * To *** Arduino, you need a computer with a USB port and a USB cable.
Spec
- Measuring range (degrees C): -60 to + 760, -64 to + 1400 (when using K thermocouples)
- Resolution (°C): -83.2 to + 999.9 °C/0.1, other/1
- Accuracy: +/- 2% or +/- 2 degrees C greater (0 degrees C to 760 degrees C), +/- (2 degrees C + 0.05/degrees C) (- 60 ~ 0 degrees C), +/- 1% or +/- 1 degrees C greater (when using K thermocouples)
- Reproducibility: +/- (1 degrees C + 0.025/degrees C) (- 60 ~ 0 degrees C), +/- 1% or the greater of +/- 1 degrees C (0 degrees C to 760 degrees C)
- Emissivity: 0.1 ~ 1 (0.1 steps)
- Distance factor (D: S): 30: 1
- Response time: 1 second
- Features: Maximum/Minimum display, Average display, Hold, Laser marker, Backlight, K Thermocouple measurement (sensor sold separately)
- Drip-proof and waterproof: IP 54
- Includes: USB cable and software
- Power supply: 2 AAA batteries (included for testing)
- Connectable thermocouple: K Thermocouple (connector shape: miniature mega connector)
- Size: 176 x 118 x 62 mm
- Weight: approx. 270 g (battery included)
- *The standard calibration points are three points: low temperature, medium temperature and high temperature. If you would like additional points, please contact us separately.
