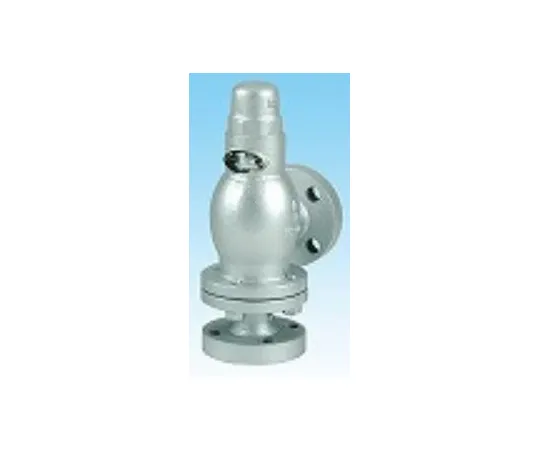

64-3827-91 FCD/SUS Lift safety Valve Sealed, Flange, steam AL-301-15AX0.1MPa
Product Description
Product Model: 64-3827-91Product Brand: Yoshitake Inc. […]
Contact Us
Product Details
Product Model: 64-3827-91
Product Brand: Yoshitake Inc.
Features
- Safety Relief Valve after Decompression
- Safety Valves for Small Boilers, Various Pressure Vessels, and Instrumentation Equipment
- Main Parts Made of Stainless Steel
Spec
- Specifications: Sealed Type, Main Part SUS
- Type: safety relief valve
- Format: lifting height Expression
- Nominal Diameter: Listed after the model number
- Applicable Fluid: steam
- Applicable Pressure Range: 0.05 to 1.6 MPa
- Connection Method: JIS 10 KFF
- Maximum temperature: 220 deg.
- Valve Box/Spring Box: FCD 450
- Valve Body/Valve Seat: SUS
