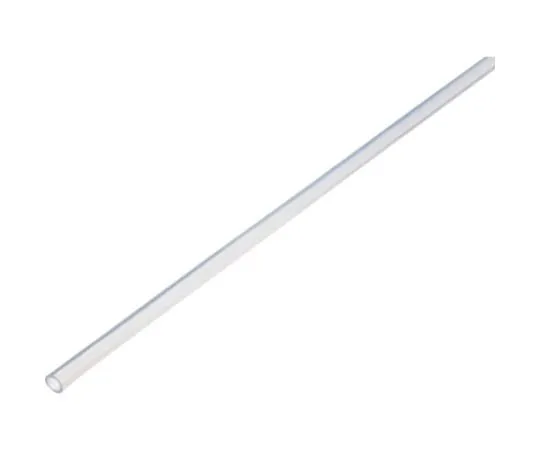

67-2253-07 Semi-Conductive Transparent Polyurethane Tube UC 12 x 8 mm 20 m Transparent 25C-12-C-20
Product Description
Product Model: 67-2253-07Product Brand: Junkosha Inc. F […]
Contact Us
Product Details
Product Model: 67-2253-07
Product Brand: Junkosha Inc.
Features
- Transparent.
- The specification does not contaminate the fluid.
- It suppresses the adhesion of dust and dust without static electricity remaining.
- No electrostatic sparks.
- For piping to transfer insulating fluid in clean environment
- For piping of pneumatic equipment that prevents electric charge
Spec
- colors: transparent
- Outer Diameter (mm): 12
- Inner diameter (mm): 8
- Minimum b*** radius (mm): 28
- Length (m): 20
- Fluids Used: Air
- Maximum working pressure (MPa): 0.6
- Total length (m): 20
- Fluids Used: Air
- Operating Temperature Range: -20 to +60°C
- Maximum Working Pressure: 0.6 MPa (at 23°C)
- Applicable Fittings: One-touch Fittings M Series, One-touch Fittings W Series, Brass Fittings, Handy-touch Fittings, Stainless Steel Fittings US2
- Material/Finish: Semi-Conductive Polyurethane
- Country of Origin: Japan
- Securities Code: 383-2039
