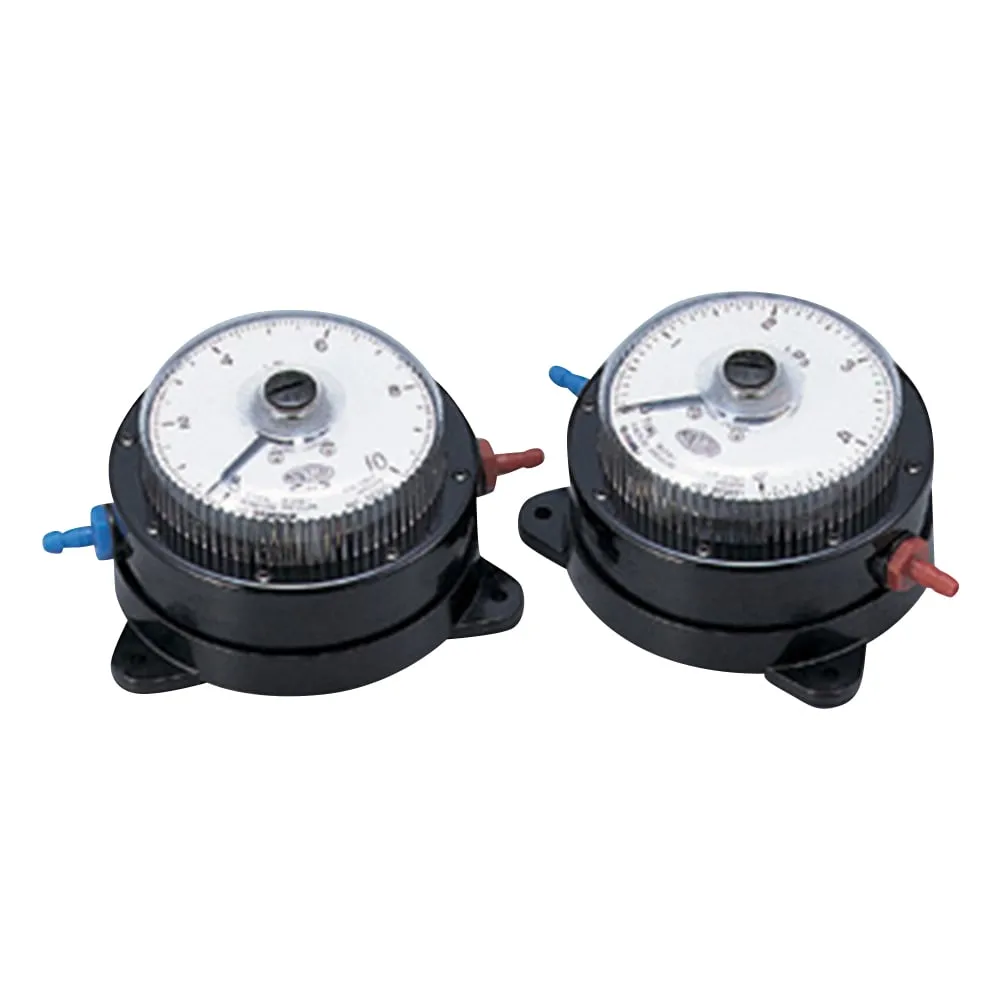

1-750-01 Manostar Gauge (High-Performance Fine Pressure Difference Meter) WO81FN300D
model:
1-750-01
category:
toner
Product Description
Product Model: 1-750-01 Features Easy-to-read guide Has […]
Contact Us
Product Details
Product Model: 1-750-01
Features
- Easy-to-read guide Has a wide angle scale with a rotation angle of 270°.
- High performance diaphragm with low hysteresis (within accuracy error).
- Uses a connection cap for easy polarity conversion.
Spec
- Model number: WO81FN300D
- Range: 0 - 300Pa
- Position for installing Vertical installing from upward horizontal is optional
- Accuracy: +/-1.5%FS
- Pressure measuring method: Differential pressure type
- Element method: Diaphragm method (Silicone rubber)
- Weight: Approx 270g
- Scale method: 270° wide angle instruction (scale length 170mm)
- Cap polarity: Back side pipe of left and right 2 sides of polarity is also available by replacing cap of high pressure red seal and low pressure blue seal.
- Instrument body withstand pressure: About 0.2MPa
- Vibration resistance: 5 - 10Hz, 10mm, 10 - 50Hz, acceleration total amplitude 39m/s^2 (3 axis directions 2h each)
- Impact resistance: 100m/s^2 (3 axis directions 6 times each)
- Applicable gas atmosphere: Air and noncorrosive gas (liquid disabled)
- Connection port: POM (polyacetal) made hose nipple (outer diameter φ7mm)
- Ambient temperature range: -10 to +50℃
- Usage ambient humidity: 90%RH or less
