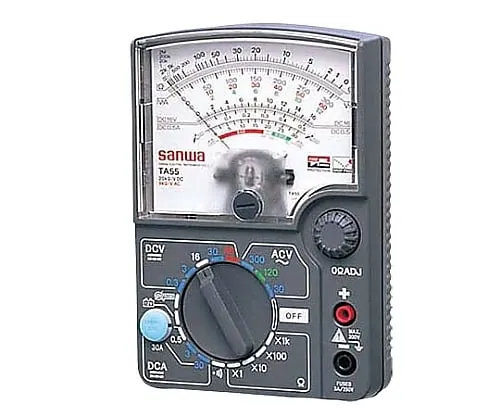

61-3378-49 Analog Multitester Automobile Measurement Supported TA55
Product Description
Product Model: 61-3378-49Product Brand: SANWA ELECTRIC […]
Contact Us
Product Details
Product Model: 61-3378-49
Product Brand: SANWA ELECTRIC INSTRUMENT CO., LTD. (Sanwa)
Features
- The scale scale and the color coding of the ***d range improve the visibility.
- With conduction confirmation buzzer range.
- Comes with a stand function that makes it easy to see the scale.
- Measurements can be made up to DCA30A (DCA 300 A with optional clamp).
- Battery Check (12 V Only)
Spec
- DCV: 0.3/3/16/30/60V
- ACV: 30/120/300V
- DCA: 0.5/3/30A
- Resistance: 2k/20k/200k/2MΩ
- Continuity: Buzzer sound at approx 70Ω or less, open voltage approx 3V
- Battery check: for vehicle-mounted 12V battery
- Power supply: R6P (AA dry battery) x 2
- Built-in f***: φ6.3 x 30mm (250V/3A)
- Dimensions/mass: H142 x W97 x D38mm/approx 300g
- Accessories: Test lead
