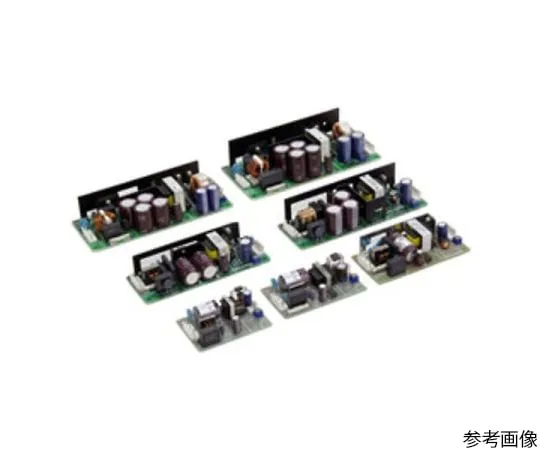

64-5674-73 Substrate Power Supply ZWS-B Series 100 W 12 V ZWS100B-12
Product Description
Product Model: 64-5674-73Product Brand: TDK-Lambda Corp […]
Contact Us
Product Details
Product Model: 64-5674-73
Product Brand: TDK-Lambda Corporation
Features
- Features
- Simple circuit configuration without harmonic current suppression circuit
- Compact, lightweight, high efficiency
- Significantly reduced input power to 0.2 W (typ) at no load (ZWS10B, ZWS15B, ZWS30B)
- Achieves 100% load factor at 50 ° operating ambient temperature (standard installation)
- Extensive lineup of options (With Cover, L Sheet Metal, Coated on Both Sides of Substrate, Volumeless)
Spec
- Output Power: 100 W
- Input voltage range: 85 ~ 132 VAC/170 ~ 264 VAC (auto switching)/47 ~ 63 Hz
- Output Voltage: 12 V
- Output Current: 8.5 A
- Efficiency (typ): 0.86/0.87 (100/200 VAC)
- Operating temperature range (deg. C): -10 to + 70 (-10 to + 50: 100%, + 60: 70%, + 70: 20%)
- Dimensions (mm): 62 x 33 x 155
- Remarks: No cover
- RoHS compliant
