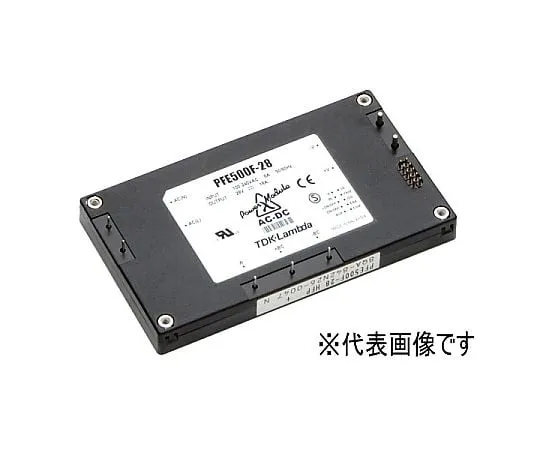

Spec

• Output Power: 504 W
• Input voltage range: AC 85 ~ 265
• Output Voltage: 12 VDC
• Output Current: 42 A
• Efficiency (typ): 81/83% (100 VAC/200 VAC)
• Operating temperature range: -40 to + 85 (base plate temperature)
• Dimensions: 70 x 12.7 x 122 (mm)
• Remark: Mount hole diameter, phi 3.3 tap, no through hole
• High Power Factor: 0.95, High Efficiency: 86%, Input Voltage: 85 ~ 265 VAC
• Harmonic Current Regulatory Compliance (EN 61000 -3 -2)
• Large capacity 500 W to 1000 W
• Wide range of base plate temperatures: -40 to + 100 degrees C (varies with some models)
• N + 1 parallel redundant operation, series operation, remote sensing, ON/OFF controllable
• Surge capacity Normal/Common mode 6kV compatible (When installing an absorber and input filter)
• RoHS compliant
