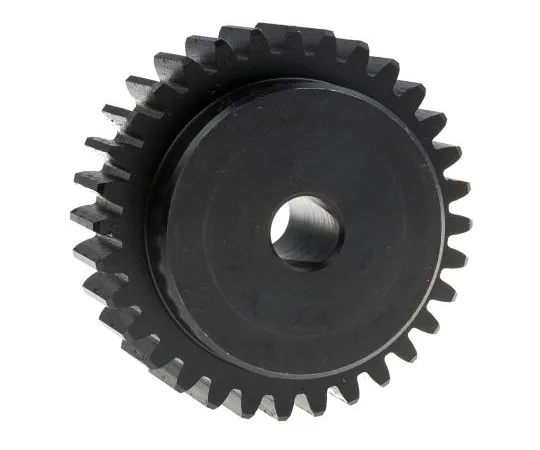

63-7607-17 RS PRO Steel 32 Teeth Spur Gear, 64mm Pitch Diam. , 50mm Hub Diam. , 12mm Bore Diam. 521-6626
Product Description
Product Model: 63-7607-17Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7607-17
Product Brand: RS PRO
Features
- DIN Standard - DIN 867, DIN 3962, DIN 3963, Grade / Quality 9 or equivalent. SSN10/10B and SSN10/12B are hobbed type pinions with cutter runout after the 5 mm gear face width. Steel Metric Spur Gears. RS Pro high quality steel spur gears in a range of gear ratios. Ideally ***d for speed reduction or increase, torque multiplication, resolution and accuracy in positioning systems. Features and Benefits. Steel EN8 (080M40/080M46) or equivalent Tensile strength: 569N/mm ;sup>2 ;/sup> (min.) 20° pressure angle
Spec
- Quantity:1piece
- Module : 2
- Number of Teeth : 32
- Material : Steel
- Bore Diameter : 12mm
- Hub Diameter : 50mm
- Pitch Diameter : 64mm
- Face Width : 20mm
- CODE No.:521-6626
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments
63-5016-42 Tyco Electronics Dynamic 1000, 12 Way, Straight PCB Header 1-1827875-6
model: 63-5016-42
brand: TE Connectivity
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments

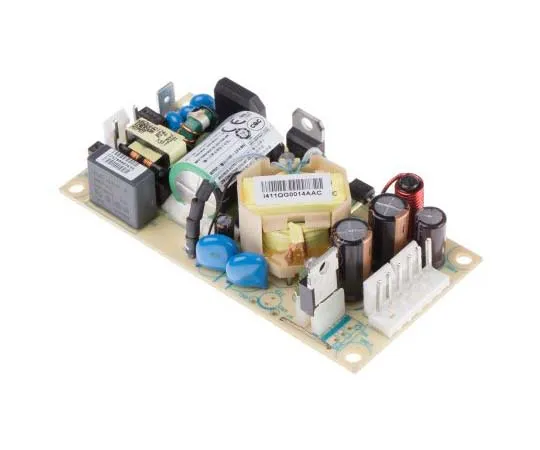

63-7800-20 Artesyn Embedded Technologies 25W 1 Output Embedded Switch Mode Power Supply SMPS, 2.7A, 15V dc Medical Approved Open NPS24-M
