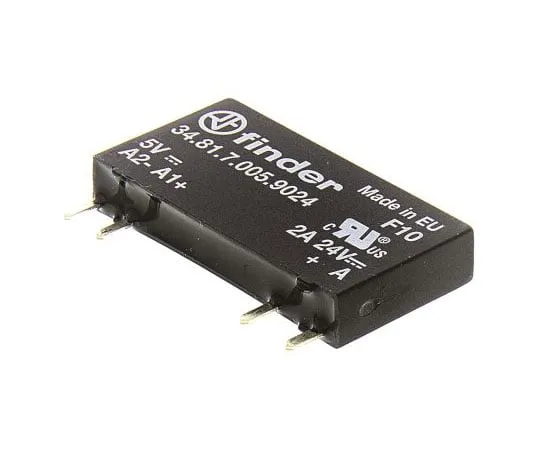

63-7615-59 Finder 6 A SPNO Solid State Relay, DC, PCB Mount, 24 V dc Maximum Load 34.81.7.005.9024
Product Description
Product Model: 63-7615-59Product Brand: Finder Features […]
Contact Us
Product Details
Product Model: 63-7615-59
Product Brand: Finder
Features
- UL. 34 Series. Slim 5mm SSR AC versions have zero cross switching Isolation between input and output 2500Vac Wash tight RTIII Dimensions (WxHxD) 5.0x15.5x28mm Operating temperature range -20 to +60°C
Spec
- Quantity:1piece
- Minimum Load Current : 1 mA
- Maximum Load Current : 6 A
- Series : Series 34
- Minimum Load Voltage : 1.5 V dc
- Maximum Load Voltage : 24 V dc
- Minimum Control Voltage : 3.5 V
- Maximum Control Voltage : 12 V
- Switching Type : DC
- Contact Configuration : SPNO
- Terminal Type : Cage Clamp
- Package Style : SIP4
- Maximum Turn On Time : 0.1 ms
- Dimensions : 28 x 15 x 5mm
- Minimum Operating Temperature : -20°C
- CODE No.:533-7600
