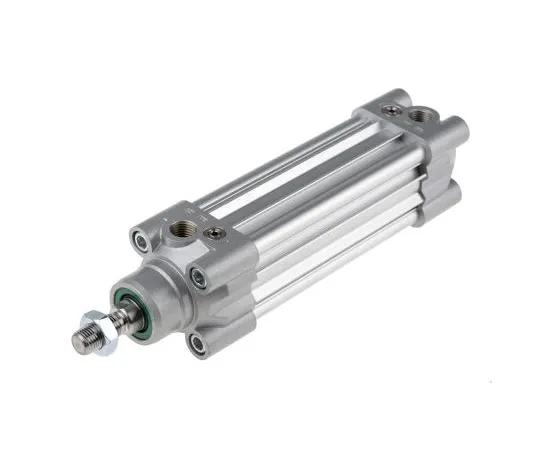

63-7572-67 RS PRO Pneumatic Profile Cylinder 40mm Bore, 80mm Stroke, CDEM Series, Double Acting 480-2197
Product Description
Product Model: 63-7572-67Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-7572-67
Product Brand: RS PRO
Features
- The table below shows theoretical cylinder thrusts in Newtons according to cylinder bore, stroke out or in and air pressure. These figures should be multiplied by a factor of 0.85 to account for cylinder efficiency. VDMA Profile Range Ø 32-50mm. Conforms to Standards: VDMA 24562; (1992); ISO 6431 Double-acting and through-rod versions Magnetic piston as standard Clean line cylinder Stainless steel piston rod Integral reed switch slot Seal kits available (a set of O-rings to enable reconditioning of RS VDMA cylinders) Complete with piston rod nut
Spec
- Quantity:1piece
- Manufacturer Series : CDEM
- Action : Double
- Bore : 40mm
- Stroke : 80mm
- VDMA Standard : 24562
- ISO Standard : 6431
- Maximum Operating Pressure : 10 bar
- Cushioning Type : Rubber
- Dimensions : 215 x 54 x 54mm
- Maximum Operating Temperature : +80°C
- CODE No.:480-2197
