Electronic/Electrical Parts and Controll Equipments

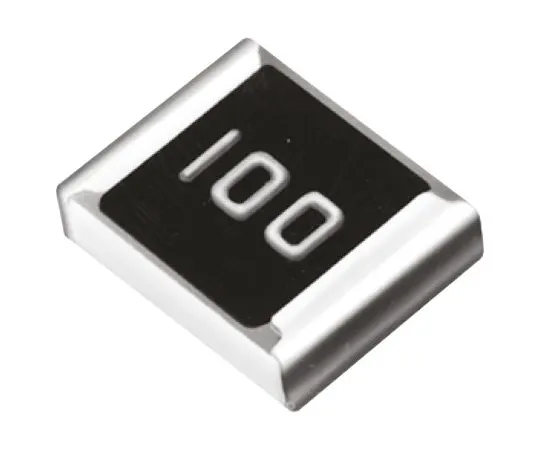

63-5154-28 10Ω 2010 Thick Film Anti Surge Fixed Resistor ±5% 1W - CRS2010-JX-100ELF CRS2010-JX-100ELF
Product Description
Product Model: 63-5154-28Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5154-28
Product Brand: Bourns
Features
- 2010 Format High Power Anti-Surge Chip Resistor - CRS Series. Bourns CRS Series thick film resistors, designed to have a high power rating whilst retaining the capability to withstand high powered surges. The CRS series are available in tolerances of either 1% or 5% and TCR values of either 100ppm or 200ppm dep***ing on the resistance value. Applications for the CRS series include: High voltage applications; Consumer electronics; Telecommunications; Power supplies. Key Features. High power rating - 1W Anti-surge Wide resistance range - 4R7 to 1M
Spec
- Quantity：1bag(20pieces)
- Resistance : 10Ω
- Technology : Thick Film
- Package/Case : 2010 (5025M)
- Tolerance : ±5%
- Power Rating : 1W
- Temperature Coefficient : ±100ppm/°C
- Series : CRS
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +150°C
- CODE No.:867-3019
