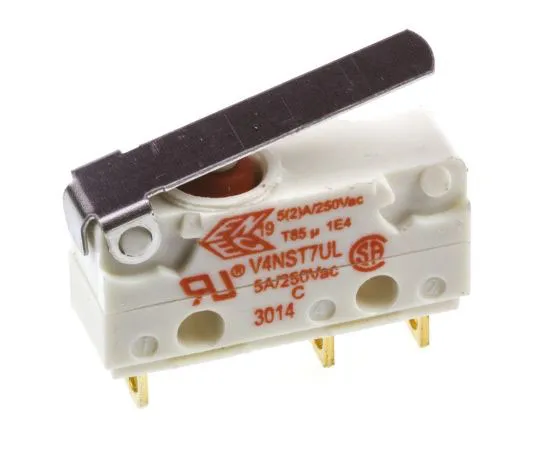

63-7567-14 SPDT-NO/NC Short Lever Microswitch, 5 A @ 250 V ac V4NST7Y1UL
Product Description
Product Model: 63-7567-14Product Brand: Saia-Burgess Fe […]
Contact Us
Product Details
Product Model: 63-7567-14
Product Brand: Saia-Burgess
Features
- UL, CSA, ENEC. The Long Lever length is 60mm. V4NS Sealed Sub-miniature Micro-switches. Sealed to IP67 SPCO contact configuation UL94-V0 flame retardant housing Dimensions: H10 x W6.5 x D20 (solder), H17 x W 6.5 x D20 (pre-wired) Operating Temperature range: -40 to +85°C
Spec
- Quantity:1bag(50pieces)
- Actuator Type : Short Lever
- Terminal Type : Solder
- Contact Current Rating : 5 A @ 250 V ac
- Contact Configuration : SPDT-NO/NC
- IP Rating : IP67
- Operating Force : 0.9 N
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +85°C
- Contact Material : Fine Silver
- Case Material : Glass Fibre Reinforced Nylon
- Mechanical Life : 5000000Operations
- Release Force : 0.07N
- Operating Temperature Range : -40 → +85°C
- CODE No.:173-9393
