Features

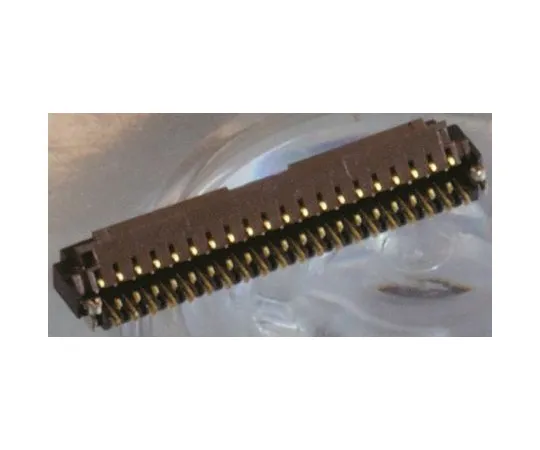

• Hirose Electric FH26 Series 0.3 mm FPC/FFC Connector
• The FH26 0.3 mm ZIF (Zero Insertion Force) FPC/FFC connector is a low-profile, lightweight design.
• This FPC/FFC connector has a low profile of only 1.00 mm in height and a narrow width of 3.2 mm, reducing footprint and space on the board.
• The rotating one-touch ZIF actuator makes it easy to insert and hold the FPC securely.
• When the actuator is fully closed, a clear feel and sound indicate that it is firmly locked in place.
• Brackets on both sides of the connector act as insertion guides for the FPC/FFC for accurate positioning.
• This bracket does not protrude outside the connector body, saving space on the board. The bottom of the FPC/FFC connector is covered with resin and the contacts are not exposed, so the connector can be mounted on the board pattern. The leads of the FH26 ZIF FPC/FFC connector are arranged on both sides at 0.6 mm pitch for easy mounting.
• This FH26 0.3 mm ZIF FPC/FFC connector supports standard 0.2 mm thick FPCs.
• The FH26W type meets halogen-free requirements in accordance with IEC61249-2-21.
• Features & Advantages: Low profile (1.0 mm height) Reduced footprint to save space on board Rotating one-touch actuator makes it easy to insert FPC/FFC and holds it securely Clear feel and sound to confirm that the actuator is fully closed Positioning FPC/FFC with metal guide Two-sided leads makes it easy to mount the board Can be mounted on board pattern due to sealed design Halogen-free type is available
• information on product ***
• Small Portable Equipment Personal Mobile Equipment Laptop PC Mobile Phone PDA Portable Audio Player DVD-R
