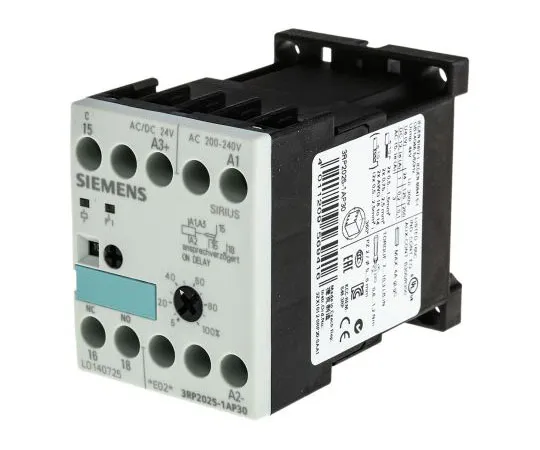

63-7566-38 Siemens ON Delay Single Timer Relay, Screw, 0.05 → 100 h, 0.05 → 100 min, 0.05 → 100 s, SPDT, 1 3RP2025-1AP30
Product Description
Product Model: 63-7566-38Product Brand: Siemens Feature […]
Contact Us
Product Details
Product Model: 63-7566-38
Product Brand: Siemens
Features
- IEC947, VDE0660, EN60947. UL listed / UL listed for Canada. On-delay Time Relays. 25°C to +60°C Approx. 5% setting tolerance ;1% repeat tolerance
Spec
- Quantity:1piece
- Supply Voltage : 110 → 240 V ac, 24 V ac/dc
- Time Range : 0.05 → 100 h, 0.05 → 100 min, 0.05 → 100 s
- Mode of Operation : ON Delay
- Mounting Type : DIN Rail
- Number of Timer Functions : Single
- Number of Contacts : 1
- Time Increment : Hours, Minutes, Seconds
- Power Supply : External
- Contact Configuration : SPDT
- Current Maximum : 1 (dc) A, 3 (ac) A
- Terminal Type : Screw
- Maximum Voltage : 250 V ac/dc
- Width : 45mm
- CODE No.:470-7935
