Electronic/Electrical Parts and Controll Equipments

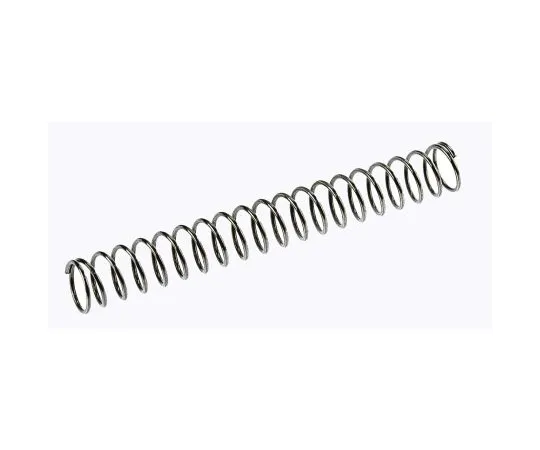

63-4655-05 RS PRO Stainless Steel Compression Spring, 54mm x 6.93mm, 0.29N/mm 821-380
Product Description
Product Model: 63-4655-05Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4655-05
Product Brand: RS PRO
Features
- Material conforms to DIN 17224 No. 1, 4310 or BS2056 EN58A. The load at the minimum operating length is the load required to compress the spring to its length.
- All dimensions and tension conform to DIN 2095 (Grade 2).
- Stainless Steel Compression Springs
- Termination is perp***icular to the length and unpolished appearance: Brown/Bronze right hand roll
Spec
- Outside Diameter:6.93mm
- Wire Diameter:0.63mm
- Free Length:54mm
- Minimum Working Length:17.7mm
- Load at Minimum Working Length:10.37N
- Material:Stainless Steel
- Spring Rate:0.29N/mm
- Ends:Closed (Square)/Unground
- CODE No.:821-380
