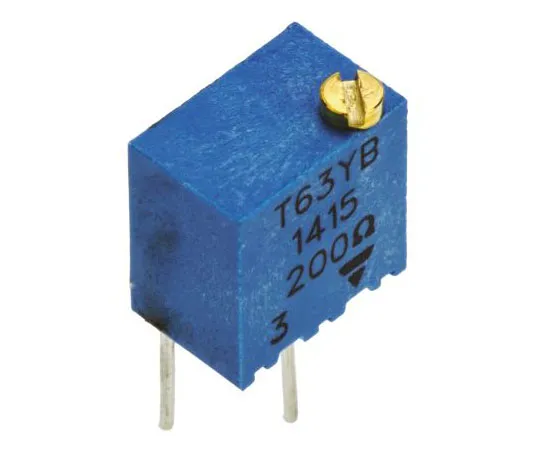

63-7512-75 200Ω Through Hole Trimmer Potentiometer 0.25W Top Adjust Vishay T63 Series T63YB201KT20
Product Description
Product Model: 63-7512-75Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-7512-75
Product Brand: Vishay
Features
- MIL-R-22097, CECC 41 100. 6mm 1/4in. 250mW Top Adjust T63YB. Due to their square shape and small size, the multi-turn trimmers of the T63 series are ideally suited for PCB ***, enabling high density board mounting with reduced space requirement between cards. Multiturn operation A low contact resistance variation
Spec
- Quantity:1set(50pieces)
- Maximum Resistance : 200Ω
- Mounting Type : Through Hole
- Number of Turns : 14
- Orientation : Top Adjust
- Power Rating : 0.25W
- Series : T63
- Termination Style : Pin
- Tolerance : ±10%
- Temperature Coefficient : ±100ppm/°C
- Shaft Diameter : 1.8 mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +155°C
- CODE No.:167-9524
