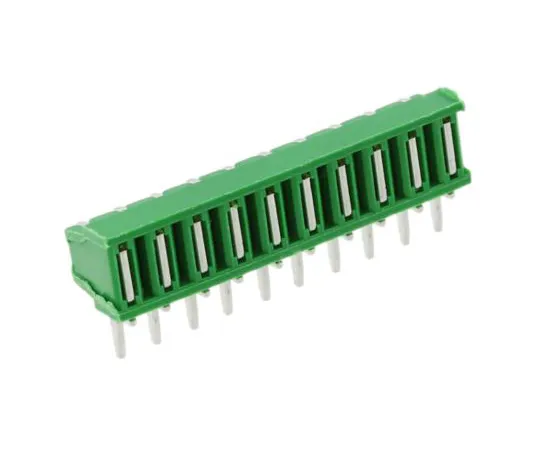

63-6575-47 IDC Connector Mini-Match Series 10 Pole 1 Row Female 2.5 mm Pitch 1-5164711-0
model:
63-6575-47
brand:
TE Connectivity
Product Description
Product Model: 63-6575-47Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-6575-47
Product Brand: TE Connectivity
Features
- TE Connectivity 2.5 mm Mini-Match 90 ° Substrate-to-Substrate Receptacle
- This 2.5 mm Mini-Match Series 90 ° Substrate-to-Substrate Receptacle features built-in overpressure protection and high contact pressure.
Spec
- Quantity: 1 bag (10 pieces)
- Number of contacts: 10
- Number of lines: 1
- Male and female: female
- Pitch: 2.5 mm
- Installation type: through hole
- Body orientation: right angle
- Terminal Method: Solder
- Contact Plating: Tin on Nickel
- Series: Mini-Match
- Operating temperature Min: -40 degrees C
- Operating temperature Max: + 85 degrees C
- Rated voltage: 250 V ac, 300 V dc
- Contact Material: Brass
- RoHS compliance status: Compliance
- Securities Code: 187 -497
