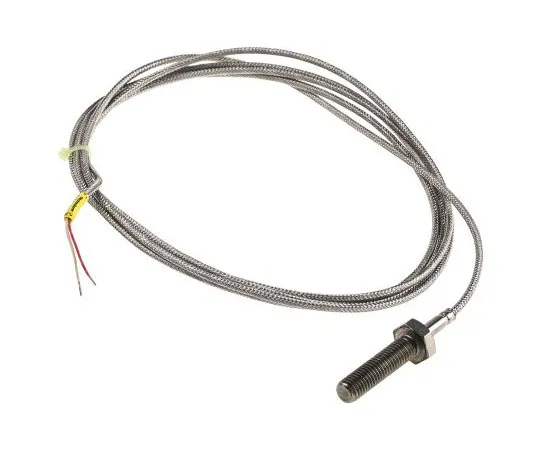

63-7512-34 Electrotherm PT100 Sensor, -50°C min +400°C max, 40mm Probe Length x M10 Probe Diameter K4-E-2LS-400
Product Description
Product Model: 63-7512-34Product Brand: Electrotherm Fe […]
Contact Us
Product Details
Product Model: 63-7512-34
Product Brand: Electrotherm
Features
- Base values and limit deviations according to DIN EN 60751. Type K4 — High-Temperature Cable Sensor, PT100. Screw-in resistance thermometer Temperature measurement and monitoring on diverse application sites Temperature range -50 °C → +200 °C or +400 °C Anti-kink spring Stainless steel screw with connection lead Two or three-conductor circuit Accuracy class B 2.5 m connection lead Stainless steel screw M8 x 40 mm (200 °C) or M10 x 40 mm (400 °C) 400 °C version with cable sheathing reinforced with fibre glass
Spec
- Quantity:1piece
- Sensor Type : PT100
- Probe Length : 40mm
- Probe Diameter : M10
- Minimum Temperature Sensed : -50°C
- Maximum Temperature Sensed : +400°C
- Process Connection : M10
- CODE No.:373-6910
