Features

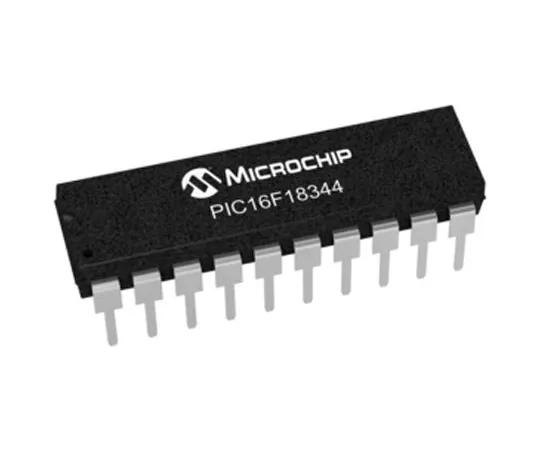

• PIC16F18324/18344 8-Bit Microcontrollers. PIC16F18324/18344 microcontrollers feature analogue, core-indep***ent peripherals and communication peripherals, combined with Extreme Low Power (XLP) for wide range of general purpose and low power MCU applications. The Peripheral Pin Select (PPS) functionality enables pin mapping when using the digital peripherals (CLC, CWG, CCP, PWM and communications) to add flexibility to the application design. Enhanced mid-range core with 49 Instruction, 16 stack levels 7KB Flash program memory with self-read/write capability 256B EEPROM IDLE and DOZE low-power modes Peripheral Module Disable (PMD) Peripheral Pin Select (PPS) 2 x 10-bit PWMs 4 x Capture, compare, PWM (CCP) 2 x Complementary waveform generator (CWG) Numerically controlled oscillator (NCO) 4x Configurable logic controller (CLC) 15-channel 10-bit ADC (21-channel on PIC16F18344) 5-bit DAC 2 x Comparator SPI/I2C and EUSART Interface 4 x 8-bit timers and 3 x 16-bit timer Ext***ed Watchdog Timer (WDT) Enhanced power-on/off-reset Low-power brown-out reset and programmable brown-out reset In-circuit serial programming (ICSP)
