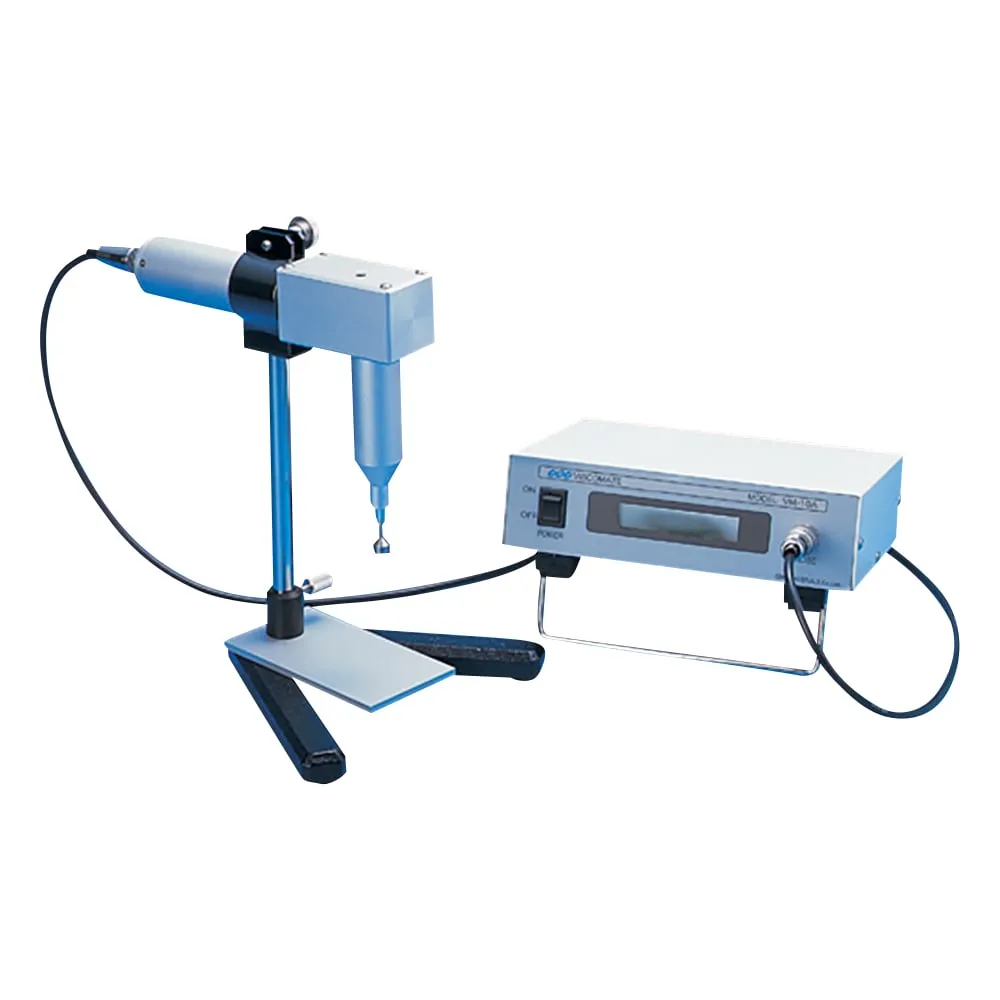

1-4724-01 Vibration Viscometer VM-10A-L
model:
1-4724-01
category:
toner
Product Description
Product Model: 1-4724-01 Features Viscosity is measured […]
Contact Us
Product Details
Product Model: 1-4724-01
Features
- Viscosity is measured by the detection *** of a torsional vibrator made by a ceramic element by rotating vibration.
- Since it is possible to measure even a small amount (7~8 mL) of sample, it is suitable for measuring valuable samples.
- By setting the viscosity control standard, the change rate of ±50% can be displayed, making process control and standard control easy.
Spec
- Model number: VM-10A-L
- Measurement range (mPa・s): 0.4 - 1000
- Measurement accuracy (*): +/- 5%
- Measurement reproducibility (*): ±2% *when JISZ8809-2000 standard solution for viscometer calibration is stirred with stirrer etc. at Room temperature, liquid temperature 23℃ ±3℃
- Display: 3 digit LCD (excluding decimal point)
- Calibration: Comparison calibration using JISZ8809-2000 standard liquid for viscometer calibration.
- Power supply: DC 6 - 9V (including AC adapter)
- Size: Controller/52 x 190 x 160mm (protuberance not included), Probe/φ32 x 169mm (holding unit), φ25 x 84mm (measuring unit), φ 3 - φ 9mm (detector)
- ■Accessories: Connection cable (1.5m), Stand, Simple communication software, Carrying case
- (*) when JISZ8809-2000 standard solution for viscometer calibration is stirred with stirrer etc. at Room temperature, liquid temperature 23℃ ±3℃
