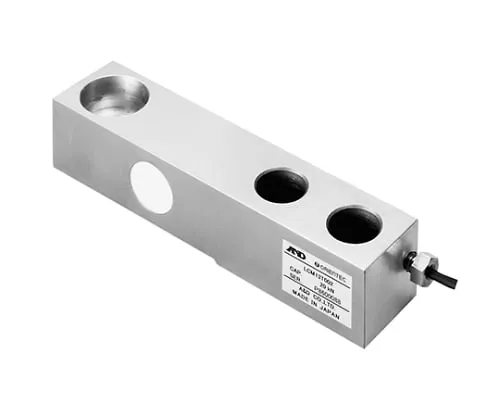

61-4676-57 Stainless Steel Load Cell LCM13-T002 LCM13T002
Product Description
Product Model: 61-4676-57Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 61-4676-57
Product Brand: A&D
Features
- Ideal for building platforms and tank scales that require corrosion resistance.
- Can be ***d for both tension and compression, and easy to install.
- Dustproof & Waterproof IP67
Spec
- Rated capacity: 20kN (2.039t)
- Rated output: 2mV/V ±0.1%
- Allowable overload: 150% of R.C..
- Marginal overload: 200% of R.C..
- Total error: 0.03% of R.O..
- Recomm***ed applied voltage: DC 5 - 12V
- Maximum applied voltage: DC15V
- 0 balance: ±1% of R.O..
- Input terminals resistance: Approximately 380 ±20Ω.
- Output terminals resistance: 350 ±3.5Ω
- Insulation resistance: 5000MΩ/DC50V
- Temperature compensating range: -10℃ - 40℃
- Temperature effect of 0 points: 0.016% of R.O./10℃
- Temperature effects of output: 0.013% of Load/10℃ Typ..
- Cable thickness/length: φ4mm/3m
- Dustproof, waterproof: IP67
