Electronic/Electrical Parts and Controll Equipments
63-7495-97 Pudenz 200A CF Car F***, 58V dc 155.0892.6201
Product Description
Product Model: 63-7495-97Product Brand: Pudenz Features […]
Contact Us
Product Details
Product Model: 63-7495-97
Product Brand: Pudenz
Features

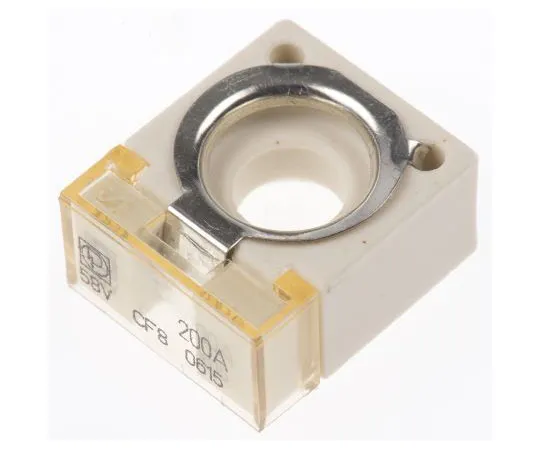

- UL Recognised. Illustration shows f*** mounted into battery terminal bracket and insulating nut assembly. CF8 Series Bolt-Down F***s. Compact main f***s for mounting with battery clamp on the battery pole. Compact f***link suitable as main f*** for high current applications Direct mounting eliminates need for f***holder ; improves safety Optional battery mounting clamp bracket (stock no. ; 342-0205 342-0205 ) and insulating nut (stock no. ; 342-0198 342-0198 ) are available to aid with batteries not equipped with M8 bolt terminals
Spec
- Quantity:1piece
- Current Rating : 200A
- F*** Type : CF
- Voltage Rating : 58V dc
- Length : 23.5mm
- Width : 11.5mm
- Height : 20mm
- Body Material : Ceramic
- F*** Speed : F
- Breaking Capacity at Maximum Voltage Rating : 2000 A
- CODE No.:337-7971
