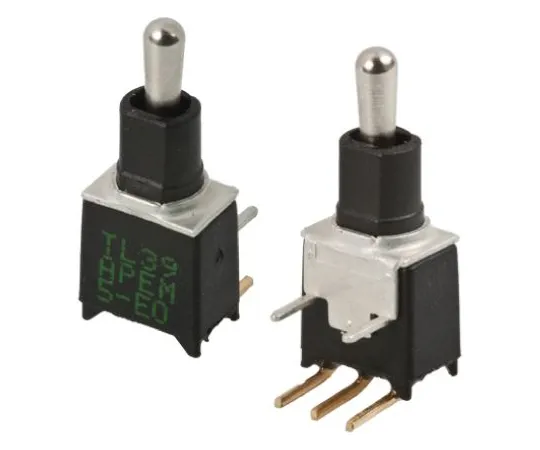

63-7026-56 APEM Single Pole Single Throw (SPST) Toggle Switch, (On)-On, PCB TL32W0050
Product Description
Product Model: 63-7026-56Product Brand: APEM Features T […]
Contact Us
Product Details
Product Model: 63-7026-56
Product Brand: APEM
Features
- The '(on)' of the bias switch represents the 'on' position of the momentum.
- Toggle Switch, Ultra Miniature, Washable
- Vertical type and two types of light angle *** types available Complete seal structure for low level switching and wave soldering compatible with immersion cleaning. Heat resistance: Gold plated brass terminal brass actuator at 260 °C for 5 seconds, PBT case Minimum load current: 10 mA (50 mV) -10 μA (5 Vdc) Number of operations: 60,000 (2 positions), 30,000 (3 positions)
Spec
- Quantity:1piece
- Contact Configuration : Single Pole Single Throw (SPST)
- Switch Operation : (On)-On
- Contact Current Rating : 400 mA @ 20 V
- Mounting Type : PCB
- Terminal Type : Through Hole
- Actuator Length : 5.3mm
- Actuator Material : Brass
- Contact Resistance : 20mΩ
- Operating Temperature Range : -30 → +85°C
- CODE No.:132-3045
