Features

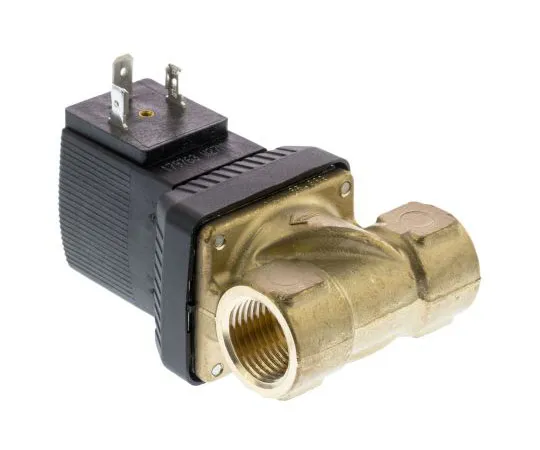

• Two-way General Purpose Solenoid Valves, Type 6213. The valve can be mounted in any position, but mounting with coil uppermost is preferred. Normally closed solenoid valves suitable for *** with oil, fat without additives, water and neutral fluids BSP parallel ports suitable for *** with compression fittings Epoxy encapsulated coils Three-pin DIN connector rated to IP65 can be positioned through 360° in 90° increments 0-10 bar pressure range Nominal coil power 8W Maximum operating temperature 55°C Power consumption 21VA (Inrush, AC); 12 VA/8 W (Constant, AC); 8W (DC) Protection to IP65
