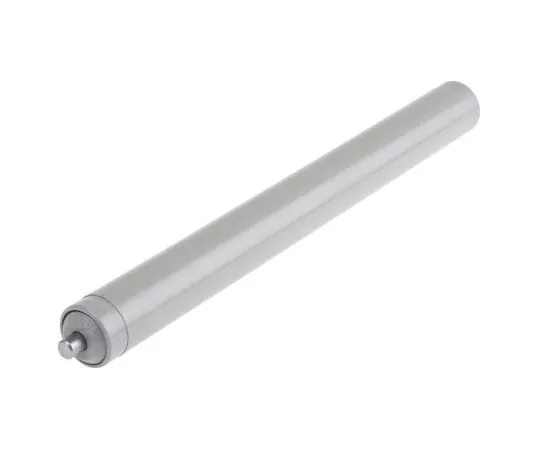

63-7480-11 Interroll PVC Round Spring Loaded Conveyor Roller 20mm x 200mm 11AZS20D03
Product Description
Product Model: 63-7480-11Product Brand: Interroll Featu […]
Contact Us
Product Details
Product Model: 63-7480-11
Product Brand: Interroll
Features
- 20mm Diameter. PVC rollers offer sound insulation, resistance to chemicals and corrosion, impact resistance and reduced susceptibility to marking products. They are low in weight and easy to clean. These are fitted with roller bearings and have spring-loaded spindles. They are available in three diameters and a wide choice of lengths to meet most conveying requirements. Round spindles Stainless steel roller bearings and springs Spindle material colour coded (steel - yellow *** caps; stainless steel - grey *** caps) 6mm spindle
Spec
- Quantity:1piece
- Tube Material : PVC
- Roller Diameter : 20mm
- Roller Length : 200mm
- Inside Frame Width : 205mm
- Dynamic Load Capacity : 20N
- Spindle Shape : Round
- Fixing Type : Spring Loaded
- Spindle Material : Stainless Steel
- Spindle Size : 6mm
- Maximum Conveying Speed : 0.3m/s
- Weight Class : Light Duty
- Overall Length : 217mm
- CODE No.:301-5695
